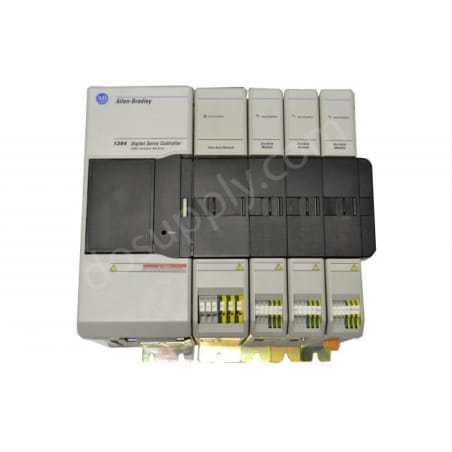

Allen Bradley Bulletin 1394 1394SJT05CRLA

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394SJT05CRLA

|
Need a Specific Revision?

The 1394SJT05CRLA servo module, from Allen Bradley's Bulletin 1394 series, offers precision control in various applications. It operates within an input voltage range of 380-480V AC at 50/60 Hz frequency, and provides significant flexibility through configurable analog outputs.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394SJT05CRLA

ManufacturerAllen Bradley
Product TypeServo Module
Product LineBulletin 1394
Part Number1394SJT05CRLA
Weight35.00 lbs (15.88 kg)
Analog InterfaceSupported
Interface Voltage TypeDC Voltage
Interface Voltage Rating-10 to 10 Volts DC
Torque ControlSupported
Velocity ControlSupported
Output TypeAnalog Test Outputs
Configurable OutputsYes
Number of Outputs2 Outputs
Remote I/O InterfaceIncluded
Input Voltage380-480V AC
Input Frequency50/60 Hz
Terminal BlocksContact-Type
View as PDF
Request a Repair

The 1394SJT05CRLA from Allen Bradley is a sophisticated servo module designed for effective motion control applications. Operating with an input voltage of 380-480 volts AC and a frequency of 50/60 Hz, this module provides robust performance under a variety of industrial conditions.

This device features an analog interface supporting a voltage range that spans from -10 to 10 volts DC, empowering users to apply precise control over both torque and velocity. The module outputs two analog test signals, allowing for effective performance analysis during operation. Configurability is enhanced with options for setting outputs according to specific application needs, making it versatile in setup.

Additionally, remote I/O capabilities are built into the design, facilitating easier integration into broader control systems. The contact-type terminal blocks provide secure connections, ensuring stable operation over time. Overall, the 1394SJT05CRLA is a well-rounded solution for demanding motion control requirements.

Revision Part #Also known as
1394SJT05CRLA Ser A1394SJT05CRLA/A, Series A, Rev A
1394SJT05CRLAX1394SJT05CRLA/X, Series X, Rev X
Don't see your particular revision? Contact us now.
