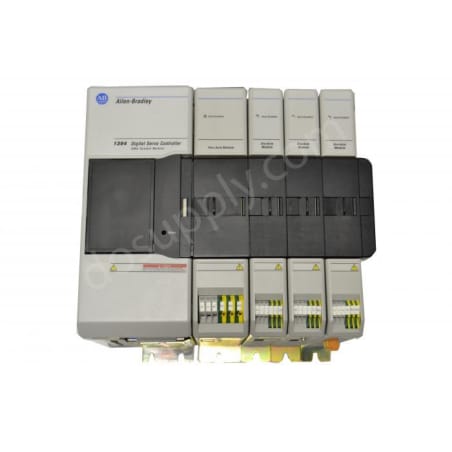

1394SJT10CRLB

The Allen Bradley model 1394SJT10CRLB, categorized under the Bulletin 1394 series, functions as a capable system module designed for complex industrial environments. It operates efficiently within input voltage limits of 360 to 480 Volts AC and is configured for three-phase power distribution. The module functions optimally at frequencies between 50 Hertz and 60 Hertz.

This system module produces a DC bus output voltage ranging from 530 to 680 volts DC. Its input current capability is rated at 13 amperes, ensuring reliable performance under load conditions. The maximum output power that this model can achieve is 10 kilowatts, with continuous output maintaining a current of 14.73 amperes. Moreover, it can deliver peak output currents of 29.46 amperes to support varying demands in operational settings.

Featuring an impressive efficiency rating of 99%, the 1394SJT10CRLB module combines optimal power utilization with high performance. It can withstand inrush peak currents of 1,300 amperes, facilitating start-up in demanding applications. The module is engineered to resist vibrations up to a maximum of 2.5G and shocks up to 30G, ensuring durability in challenging conditions. This system module stands capable of providing a maximum output power of 28 kilowatts for higher performance requirements.
