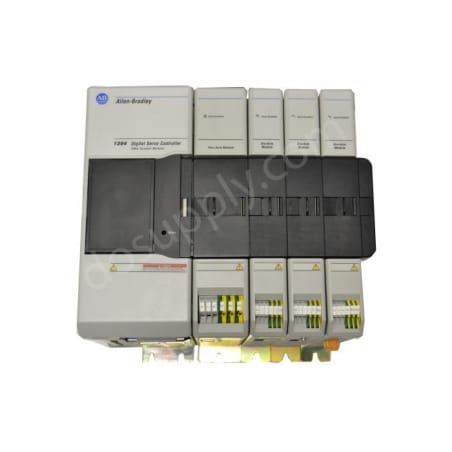

Allen Bradley Bulletin 1394 1394SJT10EA

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394SJT10EA

|
Need a Specific Revision?

The 1394SJT10EA from Allen Bradley is a servo control module specialized for applications requiring 3-phase AC voltage management. It operates within an input voltage range of 324 to 528V AC and supports significant output capabilities.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394SJT10EA

ManufacturerAllen Bradley
Product TypeServo Control Module
Product LineBulletin 1394
Part Number1394SJT10EA
Weight35.00 lbs (15.88 kg)
Voltage Type3-Phase AC Voltage
Input Voltage Range324 to 528V AC
Input Current13 Amps
Peak Inrush Current1300 Amps
Bus Output Voltage530 to 680V AC
Output Power Range8 to 10 kW
Peak Output Power28 kW
Max. Efficiency Rating99%
Typical Output Current14.73 Amps
Peak Output Current29.46 Amps
Operating Temperature0 to 50 degrees Celsius
View as PDF
Request a Repair

The Allen Bradley 1394SJT10EA is a powerful servo control module built for applications demanding precise control of 3-phase AC voltages. It can handle an input voltage range between 324 volts and 528 volts AC efficiently. With a nominal input current of 13 Amps, this device is designed to operate under typical scenarios, while it can tolerate a substantial peak inrush current of 1300 Amps during startup.

The bus output voltage is rated from 530 to 680 volts AC, providing significant flexibility to match various system requirements. Its output power falls within a range of 8 to 10 kW, with the capability to deliver peak output power of up to 28 kW when needed. The 1394SJT10EA boasts an impressive efficiency rating of 99%, ensuring minimal energy loss during operation.

Under typical conditions, this module's output current is approximately 14.73 Amps, with the ability to surge up to 29.46 Amps for short durations. Designed to function optimally within a temperature range from 0 to 50 degrees Celsius, the 1394SJT10EA is suitable for various industrial environments, ensuring reliability and performance in demanding applications.

Revision Part #Also known as
1394SJT10EA Ser A1394SJT10EA/A, Series A, Rev A
1394SJT10EAX1394SJT10EA/X, Series X, Rev X
Don't see your particular revision? Contact us now.
