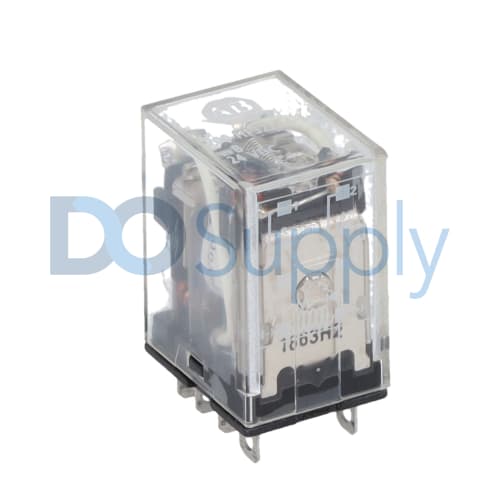

Allen Bradley Bulletin 700-HF 700-HF32Z24-1-4

Product image is representative; revision or series may vary. Contact us to request a specific version.

700-HF32Z24-1-4

|
Need a Specific Revision?

The Allen Bradley 700-HF32Z24-1-4 is an ice cube relay from the Bulletin 700-HF series. With a miniature design, this relay features a square base and operates at a coil voltage of 24V DC, suitable for a variety of industrial applications.

Out of stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 700-HF32Z24-1-4

ManufacturerAllen Bradley
Product TypeIce Cube Relay
Product LineBulletin 700-HF
Part Number700-HF32Z24-1-4
Weight0.13 lbs (0.06 kg)
Miniature RelayYes
Base TypeSquare Base
Coil Voltage24V DC
Number of Poles2 Poles
Contacts2 Form C Contacts
Contact MaterialSilver Cad. Oxide
Nominal Current12 Amps
Switching Frequency3600 Operations per Hour
Insulation Voltage250V AC
Protection DegreeOpen-Type for Sockets
Enclosure TypeTransparent Dust Cover
Insulating MaterialHigh-Dielectric Molded Material
Operating Temperature-40 to 70 degrees Celsius
Request a Repair

In the realm of control systems, the Allen Bradley 700-HF32Z24-1-4 serves as a dependable ice cube relay with a square base configuration. Notably, this miniature relay operates on a coil voltage of 24V DC, making it suitable for various low-voltage applications. It incorporates two poles with 2 Form C contacts, which are constructed from silver cadmium oxide, providing reliable switching performance.

Designed to manage a nominal current of 12 Amps, the relay supports a high switching frequency, capable of handling up to 3600 operations per hour, ensuring efficiency in dynamic applications. The insulation voltage rating of 250V AC bolsters its dependable performance in demanding environments. For user convenience, the relay's open-type protection degree allows for easy mounting on sockets, while the transparent dust cover offers protection against environmental particulates.

Constructed with high-dielectric molded materials, this relay operates effectively across a temperature range between -40 and 70 degrees Celsius, catering to both extreme cold and heat. This versatility makes the 700-HF32Z24-1-4 an essential choice for a wide array of industrial applications requiring reliability and precision.
