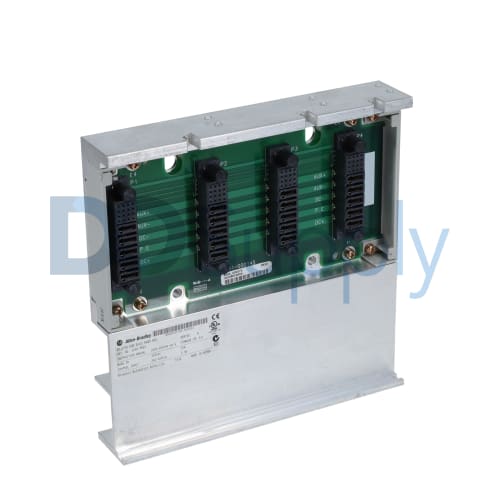

The 2093-PRS3 Kinetix 2000 3-Axis Power Rail by Allen-Bradley is a common mounting platform consisting of copper bus bars with a circuit board and conformal-coated connector pins for the installation of each module that makes up the 3-axis system. It is designed for a 3-inverter slot system and it has a maximum IAM capacity of 1 and it can accommodate any 2 additional modules. The 2093-PRS3 power rail provides logic power and control signals from the converter section to the adjacent inverter modules installed on the right slots and a slot filler (2093-PRF) is attached to any unused inverter slot to prevent damage and electric shock when operational. It has a working temperature range of 0-50 °C (32-122 °F) at 5-95% relative humidity without condensation and it is designed for storage at a temperature range of -40-85 °C (-40-185 °F). The 2093-PRS3 has a maximum installation altitude of 1500m without de-rating but it will gradually de-rate at 15% for every 1000m of additional height above. It is built to withstand an operational vibration of 2G at 55-500Hz and it has operational and non-operational shock ratings of 15 and 30G and it is rated IP2X for uses in Pollution Degree 2 Environments. The 2093-PRS3 has a net weight of 0.51Kg (1.1lb) with dimensions of 170mm x 167.5mm x 32.66mm (6.69in x 6.59in x 1.29in) and it is cUL-us and CE-certified.
Repair Services for 2093-PRS3
||Ask|| Get Quote |
Our highly skilled technicians can repair your 2093-PRS3. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Revisions for 2093-PRS3
Please refer to the manual for more information about the 2093-PRS3 such as the wiring diagrams, data sheets,
firmware information and migration or obsolescence details.
|Revision Part #
||Also Known as
||2093-PRS3/A, Series A, Rev A
