Kinetix 2000

Kinetix 2000 | Allen Bradley Drives | Image 1
In StockIn Stock
Ships TodayShips Today
One Year DO Supply WarrantyOne Year DO Supply Warranty
'Fast RepairsFast repairs at low costs

The Kinetix 2000 series is a series of Allen-Bradley multi-axis servo drives designed to extend the benefits of the Kinetix Integrated Motion system to low-power motion control applications that are compatible with the Kinetix 2000 servo drives. These servo drives are specially intended to provide simplicity, while also allowing the users to save the time and money involved in the initial programming, wiring, operation, and diagnostics functions of the drives. Kinetix 2000 servo drives come with continuous output current in the range of 1.0 to 9.5 Amps, and they all feature the same compact design for delivering excellent performance as well as cutting costs. The Kinetix drives allow the users to learn how to use one of them just once and reuse the product knowledge to operate a different Kinetix drive. When integrated with the CompactLogix 1768-L4x controllers, these servo drives are convenient for use with small as well as mid-sized applications and they improve the quality and productivity of machines.


The Allen-Bradley Kinetix 2000 servo drives come with a wide range of components, including 1 integrated axis module, a maximum of 7 additional axis modules, 1 power rail, 1 to 8 rotary and linear motors or linear actuators, 1 to 8 motor power and feedback cables, and 2 to 9 SERCOS fiber-optic cables. Additionally, the Kinetix 2000 servo drives also have optional components, including 1 or more integrated axis modules along with the associated axis modules, power cables, rails, and motors that are required for various applications. Other optional parts are 1 shunt module, slot-filler modules, and an Allen-Bradley 2094 Line Interface Module.

Allen-Bradley Kinetix 2000

Technical Specifications

  • Kinetix 2000 input-voltage range 170-264V AC or 240-375V DC
  • Input frequency range 47-63Hz



Allen-Bradley Kinetix 2000

Technical Specifications

  • Kinetix 2000 input-voltage range 170-264V AC or 240-375V DC
  • Input frequency range 47-63Hz



Kinetix 2000 Description Stock Level
2093-AC05-MP12093-AC05-MP1: Allan Bradley 3Kilowatts Integrated Axis Module - 0.3 Kilowatts
Available Now
2093-AC05-MP22093-AC05-MP2: Allan Bradley 3Kilowatts Integrated Axis Module - 0.6 Kilowatts
Available Now
2093-AC05-MP52093-AC05-MP5: Allan Bradley 3Kilowatts Integrated Axis Module - 0.9 Kilowatts
In Stock

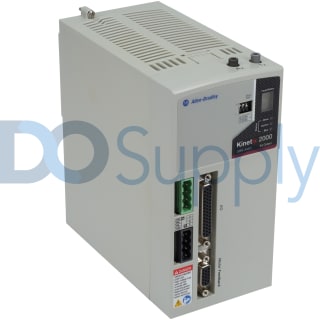

2093-AM012093-AM01: Allan Bradley 1.9 Kilowatts Axis Module (Double Wide)
Available Now
2093-AM022093-AM02: Allan Bradley 3.0 Kilowatts Axis Module (Double Wide)
Available Now
2093-AMP12093-AMP1: Allan Bradley 0.3 Kilowatts Axis Module
In Stock
2093-AMP22093-AMP2: Allan Bradley 0.6 Kilowatts Axis Module
Available Now
2093-AMP52093-AMP5: Allan Bradley 0.9 Kilowatts Axis Module
In Stock
2093-ASP062093-ASP06: Allan Bradley Shunt Module (Power Rail Mountable)
In Stock
2093-PRF2093-PRF: Allan Bradley Power Rail Filler
Available Now
2093-PRS12093-PRS1: Allan Bradley Power Rail, One Axis
Available Now
2093-PRS22093-PRS2: Allan Bradley Power Rail, Two Axis
Available Now
2093-PRS32093-PRS3: Allan Bradley Power Rail, Three Axis
In Stock
2093-PRS42093-PRS4: Allan Bradley Power Rail, Four Axis
In Stock
2093-PRS52093-PRS5: Allan Bradley Power Rail, Five Axis
Available Now
2093-PRS72093-PRS7: Allan Bradley Power Rail, Seven Axis
In Stock
2093-PRS8S2093-PRS8S: Allan Bradley Power Rail, Eight Axis
Available Now
Kinetix 2000 Description Stock Level
