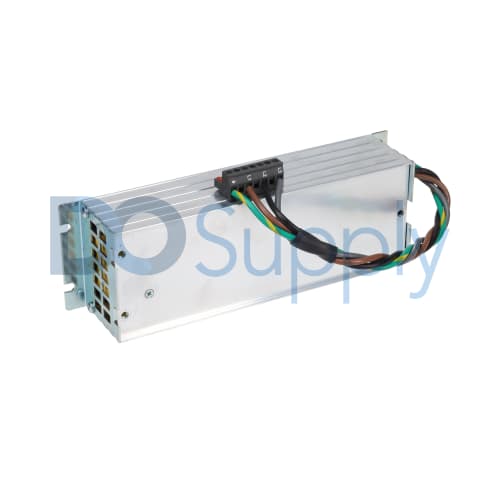

Allen Bradley Kinetix 300 2097-F4

Product image is representative; revision or series may vary. Contact us to request a specific version.

2097-F4

|
Need a Specific Revision?

The 2097-F4 AC line filter by Allen-Bradley installs on rear-mount mounting base and it requires a wire size of 14 AWG. The filter unit is part of the Bulletin 2097 mounting base and it has an input power of 240 to 480 Volts AC. This AC line filter features a strip length of 7 millimeters (0.28 inches) and a torque value of 0.5 N-m (4.5 pounds on an inch).

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2097-F4

ManufacturerAllen Bradley
CategoryDrives
Product LineKinetix 300
Part Number2097-F4
UPC884951147690
Weight1.25 lbs (0.57 kg)
CompatibilityKinetix 300/350
Input power240/480 Volts AC
Phase1 or 3
Power loss1.2 Watts
Leakage current1 milliAmp
Current rating4.4 Amps
Input frequency50 to 60 Hertz
Wire size14 AWG
Strip length7 millimeters (0.28 inches)
Torque value0.5 N-m (4.5 pounds per inch)
MountingRear-mount
Request a Repair

The 2097-F4 filter is an AC line filter component that is designed and manufactured by Allen-Bradley/Rockwell Automation. The unit is intended for usage with industrial servo drives from the Kinetix 300 or 350 drive family. The filter is part of the Bulletin 2097 product line and the manufacturer offers several different variants in order to meet different requirements. The AC line filters from the series are available with voltage ratings of 120 to 240 Volts AC or 480 Volts AC. The 2097-F4 model is compatible with the 2097-V33PR1-xx and the 2097-V34PR3-xx drives. The Kinetix 300 and 350 series drives are offered in numerous variants with continuous output power ratings of 0.4 to 3 kiloWatts and a continuous output current of 2.8 to 8.5 Amps. Besides the integrated AC line filter, these drives have other special features like the 120 Volts doubler mode and the Safe Torque-Off feature.

The 2097-F4 AC line filter requires an input power source with 240 to 480 Volts AC voltage and either 1 or 3-phases. In regard to the other specifications of the IPD connector wiring, the 2097-F4 filter features a recommended wire size of 14 AWG, a strip length of 7 millimeters (0.28 inches), and torque value of 0.5 N-m (4.5 pounds on an inch). It connects to terminals with the IPD-1, IPD-2, IPD-3, and IPD-4 pins and it has the following signal markings: PE, L1, L2, and L3. The 2097-F4 AC line filter operates on input frequency of 50 to 60 Hertz and it has a leakage current of 1 milliAmp. In addition to that, the unit has current rating of 4.4 Amps and a power loss rating of 1.2 Watts. The 2097-F4 filter component mounts on the rear of the host device and it weighs around 0.8 kilograms (0.18 pounds).
