20AC2P1A4AYNNNNN

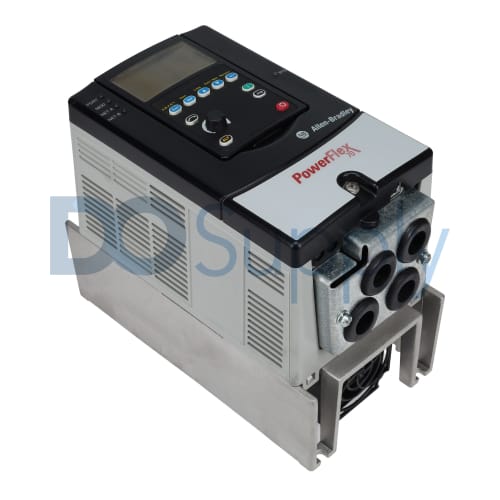

The 20AC2P1A4AYNNNNN is a PowerFlex 70 AC Drive manufactured by Allen-Bradley. Its rating is 400 Volts AC, 3-phase (6-pulse), 2.5 continuous input Amps, 2.1 continuous output Amps, 0.75 kilowatts, 0.75 Horsepower normal-duty output, 0.55 Horsepower heavy-duty output, 1.8 kVA, and an A-Frame. Among other things, this drive supports sensorless vector control, which provides adaptive performance to match the characteristics of each motor and high torque across a wide speed range. The 20AC2P1A4AYNNNNN PowerFlex 70 drive features an analog human-machine interface module on the front face of its panel–mounted type enclosure with a large easy-to-read 7-line by 21-character backlit LCD for easy drive control and programming. This drive features an internal IGBT for dynamic braking. It has no feedback–enhanced control but its slip compensation offers up to 0.5% open-loop speed regulation across a wide speed range eliminating the need for additional feedback devices in most applications.

Analog start and stop functions are also available on the 20AC2P1A4AYNNNNN PowerFlex 70 drive. It features an English documentation manual, and it provides outstanding performance in both single and multiple motor applications. This drive supports up to 3 different parameter sets that can be loaded onto it in batches. Note that the 20AC2P1A4AYNNNNN PowerFlex 70 drive does not feature a communication module. However, it is compatible with several Allen-Bradley communication adapter modules and drive peripheral interfaces. It is designed to be operated in different industrial environments; however, exposing it to corrosive gasses, vapor, or direct rainfall can result in major malfunctioning and/or damage.
