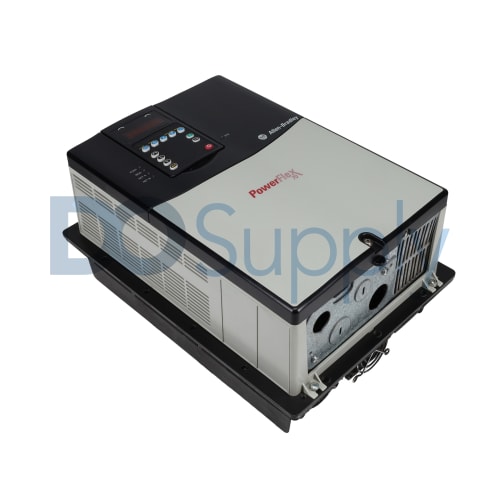

Allen Bradley PowerFlex 70 20AD034F1AYNACNN

Product image is representative; revision or series may vary. Contact us to request a specific version.

20AD034F1AYNACNN

|
Need a Specific Revision?

The 20AD034F1AYNACNN from Allen Bradley is an AC drive engineered for efficiency and robust performance. This model is designed to operate with an input voltage of 480 VAC in a 3-phase configuration and provides a power output of 25 HP, along with a continuous output current capacity of 34 Amps.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20AD034F1AYNACNN

ManufacturerAllen Bradley
Product TypeAC Drive
Product LinePowerFlex 70
Part Number20AD034F1AYNACNN
Weight32.00 lbs (14.51 kg)
Input Voltage480 VAC, 3 PH
Output Power25 HP
Continuous Output Current34 Amps
Enclosure TypeFront IP20, NEMA Type 1; Rear = NEMA Type 4X/12
BrakeIGBT Installed
Brake ResistorNo
Output Frequency Range0–400 Hz
Mounting TypeFlanged Mount
Frame SizeD
CommunicationControlNet (Coax) - DPI Module
FeedbackNo Feedback
Control MethodStandard Control
DisplayLED Display, Digital Keypad
Switching Frequency10 kHz
Request a Repair

The Allen Bradley 20AD034F1AYNACNN is classified as an AC drive within the PowerFlex 70 series. It is designed to handle an input voltage of 480 VAC and operates with a 3-phase input. Rated for an output power of 25 HP, this device effectively sustains a continuous output current of 34 Amps, ensuring reliable operation across various applications.

This drive supports an output frequency range from 0 to 400 Hz, which allows for versatility in controlling motor functions. The design includes a standard control method, enhancing its adaptability for typical industrial requirements. For visual monitoring and control, the AC drive is equipped with a digital keypad combined with an LED display, enabling easy user interaction.

The mounting type for this drive is a flanged mount, and it is categorized under frame size D, optimally suited for specific installation configurations. Its enclosure offers dual protection: the front complies with IP20 and NEMA Type 1 standards while the rear provides enhanced safety with NEMA Type 4X/12 specifications, making it suitable for environments where moisture and dust could be a concern.

The 20AD034F1AYNACNN incorporates a built-in IGBT for braking purposes but does not include an internal brake resistor. Regarding communication capabilities, the drive utilizes a ControlNet connection using a coaxial DPI module. Notably, this model does not have feedback functionality, which may be a consideration depending on application requirements. It operates with a switching frequency of 10 kHz, enhancing its efficiency.
