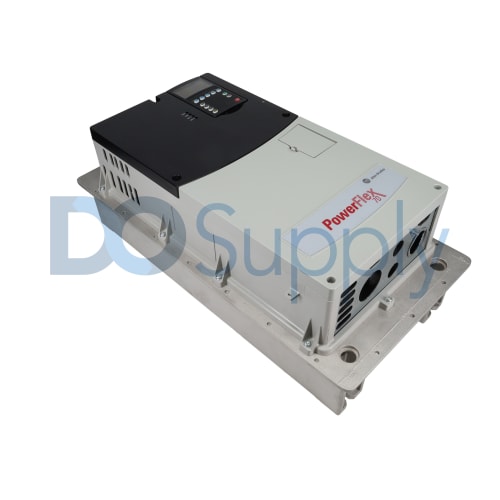

Allen Bradley PowerFlex 70 20AD065A2AYNARC1

Product image is representative; revision or series may vary. Contact us to request a specific version.

20AD065A2AYNARC1

|
Need a Specific Revision?

The 20AD065A2AYNARC1 is an Allen Bradley AC drive within the PowerFlex 70 series. It effectively operates at an input voltage of 480 V AC and is designed for use in a 3-phase configuration. The drive has a current rating of 65 horsepower, with capacities of 50 horsepower for normal duty and 40 horsepower for heavy-duty applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20AD065A2AYNARC1

ManufacturerAllen Bradley
Product TypeAC Drive
Product LinePowerFlex 70
Part Number20AD065A2AYNARC1
Weight32.00 lbs (14.51 kg)
Input Voltage480 V AC
Number Of Phases3-Phase
Current Rating65 Hp
Normal Duty Horsepower50 Hp
Heavy Duty Horsepower40 HP
Protection CategoryIP20
Display TypeLCD Display
Minimum Temperature Range0°C
Maximum Temperature Range40°C
Humidity Range5 to 95% (non-condensing)
Maximum Operating Altitude1000 meters above sea level
Keypad TypeDigital Keypad
Brake IGBTInstalled
Drive Mounted Brake ResistorNot Installed
Request a Repair

The Allen Bradley model 20AD065A2AYNARC1 is an AC drive characterized by its input voltage specification of 480 V AC. This unit is intended for 3-phase applications and is rated at 65 horsepower for its maximum capacity. It can achieve 50 horsepower during normal operational conditions and 40 horsepower during heavy-duty scenarios.

The drive is enclosed in a protection category rated at IP20, making it suitable for environments with minimal exposure to solid objects and moisture. An LCD display provides clear feedback, and users can interact with the drive using a digital keypad, facilitating straightforward parameter adjustments.

The operating temperature of this drive ranges from a minimum of 0°C to a maximum of 40°C, ensuring reliable performance under standard conditions. In terms of humidity, it can function effectively within a range of 5 to 95%, provided the conditions are non-condensing. This unit is capable of operating at altitudes up to 1000 meters above sea level, which is important for installations in various settings.

It’s equipped with a brake IGBT to enhance braking control, but it does not come with a drive-mounted brake resistor. The combination of these features makes the 20AD065A2AYNARC1 a versatile choice for a range of industrial motor control applications.
