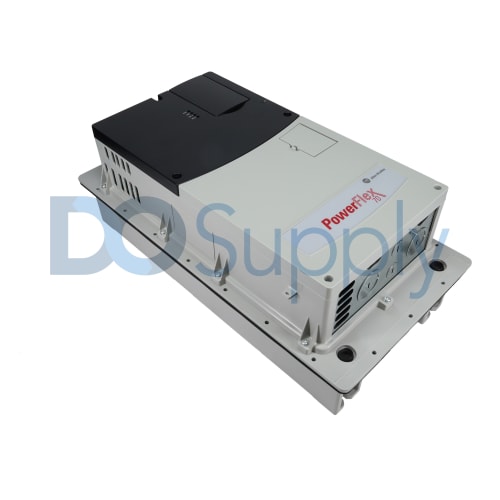

Allen Bradley PowerFlex 70 20AD065F0AYNADG0

Product image is representative; revision or series may vary. Contact us to request a specific version.

20AD065F0AYNADG0

|
Need a Specific Revision?

The 20AD065F0AYNADG0 is an AC Variable Frequency Drive (VFD) from Allen Bradley’s PowerFlex 70 series. Designed for three-phase systems, this drive operates at an input voltage of 480 VAC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20AD065F0AYNADG0

ManufacturerAllen Bradley
Product TypeAC Variable Frequency Drive (VFD)
Product LinePowerFlex 70
Part Number20AD065F0AYNADG0
Weight32.00 lbs (14.51 kg)
Motor Power (Standard Duty)50 HP (Normal Duty Cycle)
Motor Power (High Load)40 HP (Heavy Duty Cycle)
Front Enclosure RatingFlanged Mount, IP20 Protection (Front), NEMA Type 1 Compliant
Rear Enclosure ProtectionNEMA Type 4X/12 Rated (Corrosion/Water Resistant, Indoor/Outdoor)
Operator InterfaceOperator Interface Module Not Included (Blank Cover Installed)
Input Voltage Rating480 VAC, Three-Phase
Output Current Capacity65 Amps Continuous
Brake IGBTIncluded
Brake ResistorNone
EMC ComplianceCE-Certified with Secondary EMI/RFI Filter (Directive 89/336/EEC)
Communication ProtocolDeviceNET DPI Peripheral Interface Module
Control MethodologyAdvanced Vector Control (Enhanced Performance Mode)
Safety FunctionalitySafe Torque-Off (STO) Safety Feature Integrated
Feedback ConfigurationOpen-Loop Control (No Encoder Feedback Required)
Request a Repair

The 20AD065F0AYNADG0 is an AC Variable Frequency Drive (VFD) that falls under Allen Bradley's PowerFlex 70 range. This unit is engineered to operate with a three-phase input at a voltage of 480 VAC. For applications requiring motor control, it can deliver up to 50 horsepower under normal-duty cycles, while it supports heavy-duty performance at 40 horsepower.

The drive supports a continuous output current capacity of 65 Amps, ensuring robust performance for demanding applications. It is housed in a flanged mount enclosure rated IP20 at the front, compliant with NEMA Type 1 standards. The rear enclosure boasts NEMA Type 4X/12 ratings, providing effective protection against corrosion and water, thus suitable for both indoor and outdoor environments.

The unit lacks an operator interface module and is shipped with a blank cover installed. This design promotes flexibility in setup configurations. Key features of this drive include an integrated brake IGBT, while no brake resistor is included. Furthermore, it meets CE standards and incorporates a secondary EMI/RFI filter as per Directive 89/336/EEC, ensuring compliance with electromagnetic compatibility.

For communication, the drive utilizes the DeviceNet DPI peripheral interface module, facilitating advanced connectivity options. Additionally, the drive applies sophisticated vector control, enhancing operational performance. Safety is prioritized with the integrated Safe Torque-Off (STO) functionality, allowing for dependable stopping of the motor without the need for encoder feedback, as it operates within an open-loop control configuration.
