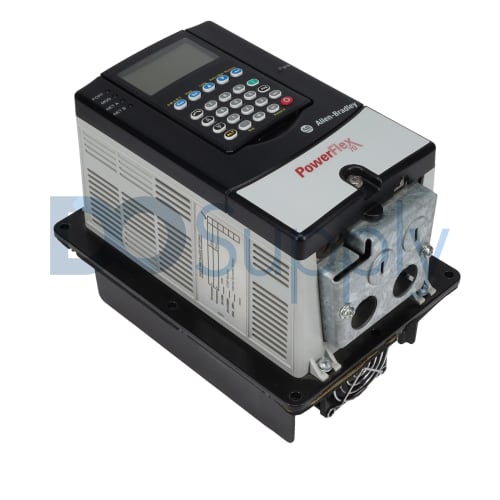

Allen Bradley PowerFlex 70 20AD3P4F3AYNAEC0

Product image is representative; revision or series may vary. Contact us to request a specific version.

20AD3P4F3AYNAEC0

|
Need a Specific Revision?

The 20AD3P4F3AYNAEC0 is a variable frequency drive designed by Allen Bradley, suitable for three-phase applications. It operates efficiently at a voltage of 480 volts AC with a power output of 2 horsepower (1.5 kilowatts) and a current rating of 3.4 amps.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20AD3P4F3AYNAEC0

ManufacturerAllen Bradley
Product TypeVariable Frequency Drive
Product LinePowerFlex 70
Part Number20AD3P4F3AYNAEC0
Weight12.00 lbs (5.44 kg)
Voltage Rating480 volts AC
Phase3-phase (6-pulse)
Current Rating3.4 amps
Power Rating2 HP (1.5 kilowatts)
Frame SizeA
MountingFlange Mount
EnclosureIP20 (Front Chassis), NEMA/UL Type 1; IP66 (Rear Heatsink), NEMA/UL Type 4X/12 for indoor use only
Maximum Surrounding Air Temperature0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit)
Pollution Degree of the Surrounding EnvironmentPollution degree 1 and 2
Brake IGBTYes
Altitude1000 meters (3300 ft) max without derating
Relative Humidity5 to 95% non-condensing
Request a Repair

The Allen Bradley 20AD3P4F3AYNAEC0 variable frequency drive is engineered for effective motor control in industrial applications. Rated for 480 volts AC, this drive is intended for use in 3-phase systems, specifically configured in a 6-pulse arrangement. It can handle a maximum output of 2 horsepower, which is roughly 1.5 kilowatts, with a current capability of 3.4 amps.

This drive adopts an A-sized frame design and supports flange mount installation, facilitating easy integration into different setups. The enclosure classification is significant; the front chassis is IP20 rated, identifying it as suitable for NEMA/UL Type 1 environments, while the rear heatsink is rated IP66, complying with NEMA/UL Type 4X/12 standards, indicating protection from water and dust—ideal for indoor applications.

Operationally, the 20AD3P4F3AYNAEC0 variable frequency drive is designed to withstand ambient temperatures from 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit). This range makes it applicable for various industrial environments. It is engineered to accommodate pollution degrees 1 and 2, ensuring reliable operation even in environments with mild contaminants. This drive is equipped with a brake IGBT for efficient braking applications and can function up to an altitude of 1000 meters (3300 ft) without derating. Additionally, it can operate effectively in relative humidity levels between 5% and 95%, provided that the conditions remain non-condensing.
