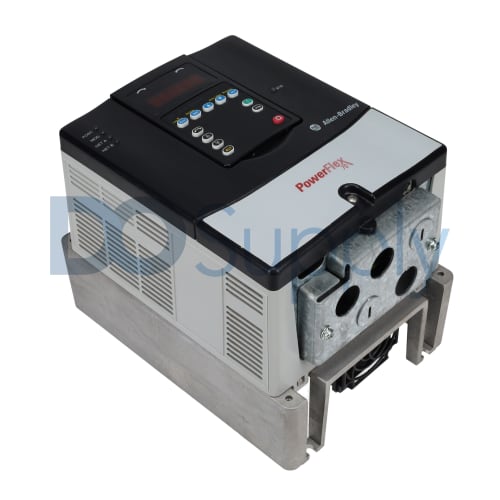

Allen Bradley PowerFlex 70 20AD5P0A1AYYAENN

Product image is representative; revision or series may vary. Contact us to request a specific version.

20AD5P0A1AYYAENN

|
Need a Specific Revision?

The PowerFlex 70 series 20AD5P0A1AYYAENN AC drive is designed for reliable performance in various industrial environments. It operates at a voltage rating of 480 V AC and is capable of handling up to 5.0 A with a three-phase input.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20AD5P0A1AYYAENN

ManufacturerAllen Bradley
Product TypeAC Drive
Product LinePowerFlex 70
Part Number20AD5P0A1AYYAENN
Weight12.00 lbs (5.44 kg)
Voltage Rating480 V AC
Current Rating5.0 A
Number of Phases3-Phase
Normal-Duty Horsepower3 Hp
Heavy-Duty Horsepower2 Hp
Protection CategoryIP20
Display TypeLED Display
Minimum Ambient Temperature0 degrees Celsius
Maximum Ambient Temperature40 degrees Celsius
Maximum Humidity95% (non-condensing)
Maximum Altitude1000 m above sea level
Keypad TypeDigital Keypad
Brake IGBTInstalled
Drive Mounted Brake ResistorInstalled
Request a Repair

The Allen Bradley 20AD5P0A1AYYAENN is a robust AC drive from the PowerFlex 70 series, tailored for various applications. This device operates at a nominal voltage of 480 V AC. Its current rating reaches a maximum of 5.0 A, making it suitable for three-phase power systems. The drive is rated for normal-duty applications at 3 horsepower, providing substantial power handling. In heavy-duty applications, it delivers up to 2 horsepower. Designed to offer suitable environmental protection, the product encapsulates an IP20 rating, safeguarding it from dust ingress and accidental contact.

User interaction is facilitated through a digital keypad, paired with an LED display that simplifies monitoring and configuration. This AC drive operates effectively in environments with ambient temperatures ranging from 0°C to a maximum of 40 °C. It also supports operation in locations with humidity levels reaching up to 95%, provided conditions are non-condensing. For installations at higher elevations, it performs efficiently at altitudes of 1000 meters above sea level.

Additionally, the drive model features a brake IGBT for effective motor control and is equipped with a drive-mounted brake resistor, which enhances its braking capabilities and overall system performance.
