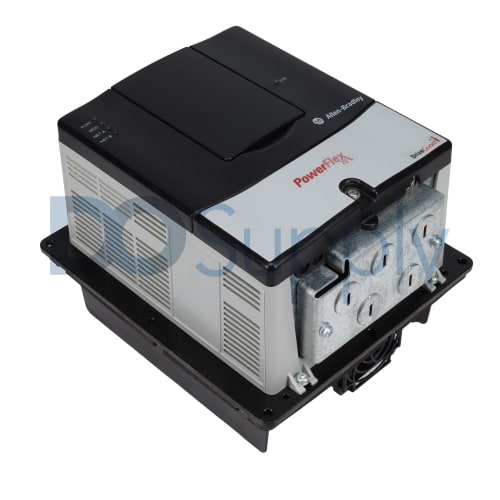

Allen Bradley PowerFlex 70 20AD5P0F0AYYNNNN

Product image is representative; revision or series may vary. Contact us to request a specific version.

20AD5P0F0AYYNNNN

|
Need a Specific Revision?

The Allen Bradley 20AD5P0F0AYYNNNN is an AC drive suited for varied applications, operating on a 480 VAC, 3-phase input. It provides 3 horsepower and continuous output at 5 amps, making it a reliable option for mid-range power requirements.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20AD5P0F0AYYNNNN

ManufacturerAllen Bradley
Product TypeAC Drive
Product LinePowerFlex 70
Part Number20AD5P0F0AYYNNNN
Weight12.00 lbs (5.44 kg)
Input Voltage480 VAC, 3 PH
Output Power3 HP
Continuous Output Current5 Amps
Enclosure TypeFront IP20, NEMA Type 1; Rear = NEMA Type 4X/12
BrakeIGBT Installed
Brake ResistorInstalled
Shock Resistance15 G
Altitude1000 meters
Switching Frequency10 kHz
CommunicationNone
FeedbackNo Feedback
Control MethodStandard Control
Interface ModuleNo HIM (Blank Plate)
Vibration Resistance0.152 mm
Request a Repair

The 20AD5P0F0AYYNNNN AC drive from Allen Bradley is engineered for robust performance in industrial settings. This device runs on a nominal input voltage of 480 VAC with a 3-phase configuration, delivering 3 horsepower efficiently. It maintains a continuous output current of 5 amps, making it suitable for tasks that require sustained performance.

Enclosure design incorporates a front IP20 rating (NEMA Type 1) and a rear assembly with NEMA Type 4X/12, offering sufficient protection against environmental hazards such as dust and moisture. An IGBT is incorporated for brake functionality, coupled with a brake resistor, optimizing control during active and inactive phases.

The drive's shock resistance is rated at 15 G, indicating its robustness against physical impacts, while it can operate effectively at altitudes up to 1000 meters. The switching frequency of the unit reaches 10 kHz, suitable for a range of applications needing precise control. Notably, this module does not provide communication capabilities, and lacks feedback or an interface module—indicated by a blank plate. Additionally, it has a vibration resistance specification of 0.152 mm, enhancing its durability in dynamic industrial environments.
