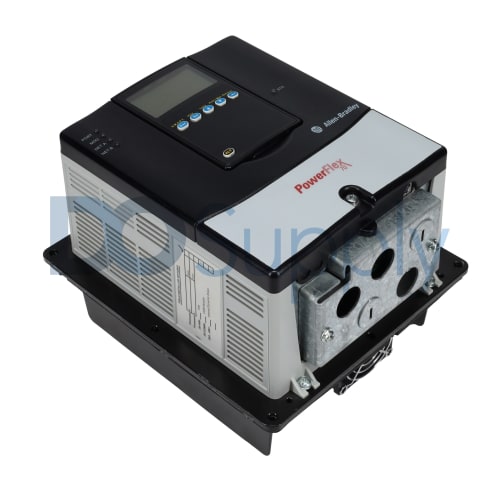

Allen Bradley PowerFlex 70 20AD5P0F5AYNANC0

Product image is representative; revision or series may vary. Contact us to request a specific version.

20AD5P0F5AYNANC0

|
Need a Specific Revision?

The model 20AD5P0F5AYNANC0 is an AC Drive from the PowerFlex 70 series by Allen Bradley. Suitable for 3-phase operations at 480 VAC, it has a power output capability of 2.24 kW or 3 HP. Its design includes both IP20/NEMA 1 for the front and IP66/NEMA 4X/12 for the rear, providing enhanced environmental protection.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 20AD5P0F5AYNANC0

ManufacturerAllen Bradley
Product TypeAC Drive
Product LinePowerFlex 70
Part Number20AD5P0F5AYNANC0
Weight10.00 lbs (4.54 kg)
Voltage Rating480 VAC
Phases3-phase
Frequency50/60 Hz
ND Current Rating5.0 A
Power Output (kW)2.24 kW
Power Output (HP)3 HP
Frame SizeB
EnclosureIP20/NEMA 1 Front, IP66/NEMA 4X/12 Back
HMI ModuleProgrammer Only LCD
Brake IGBTYes
Internal Brake ResistorNo
Communication SlotNone
Control TypeEnhanced (No Safe-Off)
Feedback OptionNone
Request a Repair

The Allen Bradley 20AD5P0F5AYNANC0 is part of the PowerFlex 70 series and functions as an adjustable-frequency AC drive. It operates effectively within a voltage rating of 480 VAC and accommodates a 3-phase configuration with a frequency range of 50 to 60 Hz.

This drive is capable of outputting 2.24 kW of power, translating to 3 horsepower, and is rated for a nominal current of 5.0 A. Its physical design is contained within a frame size B, ensuring compatibility with space-constrained installations. The drive's enclosure is rated at IP20/NEMA 1 for the front and IP66/NEMA 4X/12 for the rear, making it suitable for a variety of environmental conditions.

Interaction with the drive is facilitated through a programmer-only LCD Human-Machine Interface (HMI). The device features a brake IGBT but does not come with an internal brake resistor. Notably, this model does not include a communication slot and does not provide a feedback option.

The control type is classified as enhanced but does not include a safe-off feature, making it critical for users to ensure safety compliance externally. Overall, the 20AD5P0F5AYNANC0 drive is designed for efficiency and adaptability in various applications.
