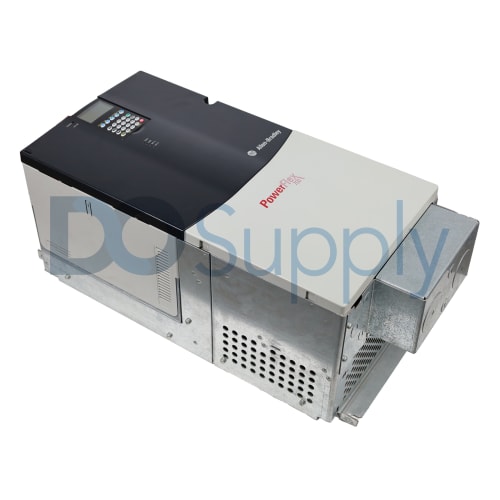

20BD125A3ANNACB0
The part number 20BD125A3ANNACB0 represents an adjustable frequency AC drive from the Allen Bradley PowerFlex 700 series. Operating at a maximum voltage rating of 480 VAC, this unit is specifically designed for 3-phase systems and can handle line input frequencies of 50 or 60 Hz. It has a nominal current of 125 A and achieves a power rating of 75 kW, or 100 HP, facilitating substantial motor control in industrial applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 20BD125A3ANNACB0
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Adjustable Frequency AC Drive |
| Product Line | PowerFlex 700 |
| Part Number | 20BD125A3ANNACB0 |
| Weight | 32.00 lbs (14.51 kg) |
| Voltage Limit | 480 VAC |
| Supported Phases | 3-phase |
| Line Input Frequency | 50/60 Hz |
| Current Value ND | 125 A |
| Power Rating (kW) | 75 kW |
| Power Rating (HP) | 100 HP |
| Size Class | 5 |
| Protection Type | IP20, NEMA 1 |
| HIM Module Option | Full Numeric LCD |
| IGBT Brakes | No |
| Braking Resistor | No |
| Comm. Module | ControlNet (Coax) |
| I/O and Control Type | Standard, 115 VAC |
| Type of Feedback | None |
The 20BD125A3ANNACB0 adjustable frequency AC drive belongs to the Allen Bradley PowerFlex 700 series, providing effective control for various motor applications. This drive operates on a 3-phase electrical system with a maximum voltage of 480 VAC. It supports input frequencies of either 50 or 60 Hz, suited for diverse operational requirements. With a nominal current rating of 125 A, this device delivers a robust power output of 75 kW, equating to approximately 100 horsepower, ideal for demanding industrial environments.
This drive is categorized as Size Class 5, ensuring compatibility with specific mounting and installation conditions. The protection type is rated as IP20, conforming to NEMA 1 standards, which grants it basic protection against solid object ingress. Although this unit includes a full numeric LCD for the human-machine interface, it does not come equipped with IGBT braking capabilities nor does it include a braking resistor for dynamic applications.
Communication is streamlined via a ControlNet module utilizing coaxial connections, facilitating integration into existing control networks. The I/O and control methods are based on a standard 115 VAC specification. There is no feedback mechanism implemented in this model, keeping the architecture simplified for straightforward operation.
| Revision Part # | Also known as | |
|---|---|---|
| 20BD125A3ANNACB0 Ser A | 20BD125A3ANNACB0/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- 208D125A3ANNAC80
- 208D125A3ANNACB0
- 20B D 125 A 3 ANNACB0
- 20BD125A3ANNAC80
- 20BD125A3ANNACBO
- 20BDI25A3ANNACB0
- 2O8DI25A3ANNAC8O
- 2OBD125A3ANNACB0
- 2OBD125A3ANNACBO
This PowerFlex 700 drive is a 480V AC unit with 100 horsepower and has an Enclosure Type of IP20, NEMA/UL Type 1
| Width (w/Mounting Hardware) | 12.16 in. (308.9 mm) |
|---|---|
| Height (w/Mounting Hardware) | 25.37 in. (644.5 mm) |
| Depth | 10.84 in. (275.4 mm) |
| Mounting Bracket Hole Width | 8.86 in. (225.0 mm) |
| Mounting Bracket Hole Height | 24.61 in. (625.0 mm) |
| Weight (Drive) | 82.0 lb (37.19 kg) |
| Estimated Total Weight (Drive and Packaging) | 109.0 lb (49.50 kg) |
