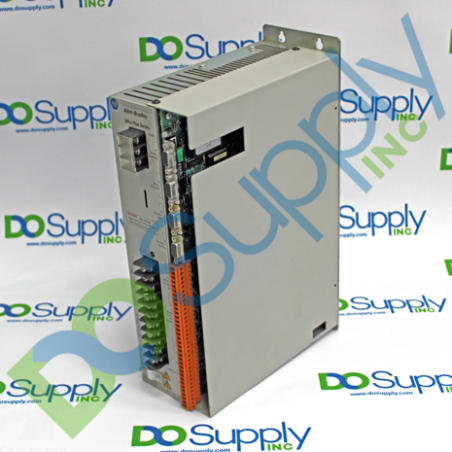

1398-PDM-020

The 1398-PDM-020 is a single-axis positioning and digital servo drive that is designed to offer high-performance and flexible operation for a wide range of applications. This digital servo drive combines drive and control functionality to make a powerful axis for the motion controller. The 1398-PDM-020 operates best at a temperature between 23 - 131 Deg. Fahrenheit, and it can be stored at a temperature between -40 and 158 Deg. Fahrenheit. The surrounding relative humidity for both operation and storage should be between 5 and 95% non-condensing. The 1398-PDM-020 can function at an altitude as high as 5000 feet above sea level without de-rating. During operation, its vibration is 10-2000 Hz at 2g, and it can take a maximum shock of 15g. It weighs 15 pounds. The 1398-PDM-020 is environmentally rugged and has peak torque, high acceleration, and high-speed point positioning. Its I/O include one 12-bit DAC output, one 8-bit DAC programmable monitor output, and one 10-bit ADC input. The 1398-PDM-020 servo drive is used to position the controls in devices such as rudders, elevators, operating grippers, and robots. These servo drives are small enough to fit into the control circuitry of a machine, but they have good power despite their size and they are designed for use in harsh environments and in-line manufacturing.

The 1398-PDM-020 has embedded communication interface such as Two (2) RS232 / RS422 combo ports that permit communication with personal computer or the PDM operator terminal that may be optionally installed along the device. This drive module has

The 1398-PDM-020 has peak output current / phase of 20 Amperes, continuous output current/phase of 10 Amperes and continuous output power of 2 kW.

To operate this drive module, the PDM must be supplied with a line voltage of 100-240VAC with frequency of 50-60Hz. It delivers continuous shunt power of 50 W, peak shunt power of 4.5 kW, Continuous shunt external power of 2.4 kW and peak shunt external power output of 6 kW. This PDM is compatible with a variety of brushless AC servo motor such as F-Series, H-Series and N-Series motors.

The 1398-PDM-020 comes with a variety of input terminals such as Serial 1 auxilliary port, Serial 2 computer port, Encoder 1 input, and Encoder 2 auxilliary input. Additionally, it has P1 connectors assigned for Discrete inputs, P2 for Discrete input and output, and P3 for Analog input and output.

The 1398-PDM-020 weighs 15 lb or 5 Kg with operating temperature of 32 - 140 Deg. Fahrenheit (0-50 Deg. Celsius) and storage temperature of -40° to 176°F (-40° to 80°C).
