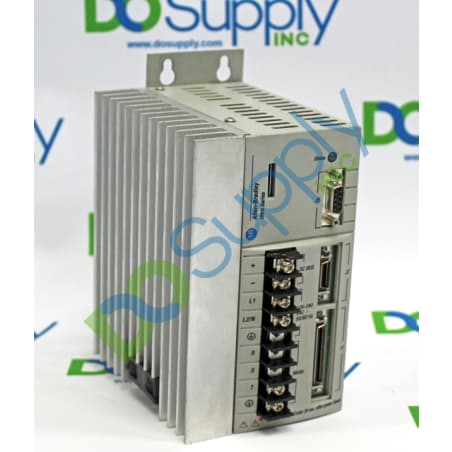

The 9101-1457 The Allen-Bradley 1398 Servo Drive 1398-DDM-010 has 100-240 rms Volts Nominal (Single Phase) AC Input Voltage, 47-63 Hz AC Input Frequency, 10 amps rms AC Input Current, and 141-339 Volts (DC) Bus Voltage.
