9101-2186

Available Now
Request a Quote

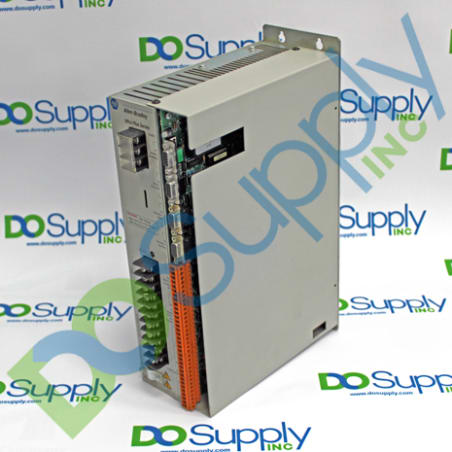

The 9101-2186 The Allen-Bradley 1398 Ultra Plus Positioning Module 1398-PDM-020 has 10 amps/Phase Continuous Output Current, G6350 Watts Continuous Shunt Power, and 4.5 kWatts Peak Shunt Power.
Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 9101-2186.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:

phone

International
919-205-4392
Rated 4.7 with 8 reviews
top legal disclaimer
top legal disclaimer

credit cards accepted
better business bureau

9101-2186

Revisions: Ser A
Description: The 9101-2186 The Allen-Bradley 1398 Ultra Plus Positioning Module 1398-PDM-020 has 10 amps/Phase Continuous Output Current, G6350 Watts Continuous Shunt Power, and 4.5 kWatts Peak Shunt Power.
Available Now
Request a quote for 9101-2186


top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 9101-2186.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.7 with 8 reviews

    Technical Specifications for 9101-2186

ManufacturerRockwell Automation
BrandAllen-Bradley
Continuous Output Power2 kWatt
Operating Temperature32-140 F (0-50 C)
Peak Shunt Power4.5 kWatts
Continuous Shunt Power50 Watts
Peak Output Current20 amps/Phase
Continuous Output Current10 amps/Phase
Part Number/Catalog No.9101-2186
Weight15 lbs (5 kg)
AC Input Voltage100-240 Vac rms Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.9101-1822
Series Ultra 200
TypeDigital Servo Drive
Part Number/Catalog No.9101-1646
Weight31.00 lbs (14.06 kg)
ManufacturerRockwell Automation
BrandAllen-Bradley
Continuous Output Power2 kWatt
Operating Temperature32-140 F (0-50 C)
Peak Shunt Power4.5 kWatts
Continuous Shunt Power50 Watts
Peak Output Current20 amps/Phase
Continuous Output Current10 amps/Phase
Part Number/Catalog No.9101-2186
Weight15 lbs (5 kg)
AC Input Voltage100-240 Vac rms Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.9101-1822
Series Ultra 200
TypeDigital Servo Drive
Part Number/Catalog No.9101-1646
Weight31.00 lbs (14.06 kg)

About 9101-2186

The 9101-2186 Ultra Plus Positioning Drive Module by Allen-Bradley is a single-axis digital and positioning drive which provides microprocessor-based high-performance velocity control and programmable positioning in a single compact and cost-effective unit. Unlike most drives, the 9101-2186 combines both drive control and positioning control in a single processing package, thereby eliminating the need for an analog interface. The drive has an input line voltage range of 115 to 240V AC (single-phase) at 50-60Hz, with a peak output current of 20A, and an output power of 2kW.  The drive has a factory built-in shunt regulator, with 4.5kW peak power and in applications that require higher power dissipation, and an external shunt kit (25 Ohms, 200W or 18 Ohms, 900W) with a peak power of 6000W, is connected to it. The 9101-2186 has an integral power supply with single-phase output power, and it also has a non-volatile memory which stores information for customizing the drive for any application, and it stores set parameters to match both the encoder feedback device and the drive. The drive, like every drive in the PDM series, has a microprocessor, with a 20 MHz internal clock, connected to the memory unit and with an access time of 0.016s.


The 9101-2186 uses the incremental encoder with 750 KHz encoder input frequency, for motor feedback, and it also has high-performance Analog and Digital I/O with scan functions. The 9101-2186 has velocity and positioning loop control, which are both digital closed for consistent results, and it utilizes 4-function math and logic functions for high-performance control. It allows for easy configuration and settings of drive’s parameters, using the exclusive Allen-Bradley Graphical Motion Control Language (GML), with the Microsoft Windows interface, which integrates software programming and system debugging to save configuration time and solve motion control problems. The drive also has an optional Operator terminal with a 4-line x 20-character vacuum fluorescent display and a sealed membrane keypad with tactile feedback, which allows for easy and convenient access to drive’s status, program variables, the control function, and message display. The 9101-2186 communicates with a PC or an operator terminal with 2 RS-232/RS-422 serial communication ports, with selectable 1200 to 19,200 baud rates, and with up to 63 node addresses. The drive is designed to operate at a temperature between 0 and 50 °C, without de-rating, and it is stored at a temperature range of -40 to 80 °C. The drive weighs approximately 5Kg, and it has shipping dimensions of 349.3mm x 111.8mm x 226.8mm.

Repair Services for 9101-2186

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 9101-2186. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 9101-2186

Please refer to the manual for more information about the 9101-2186 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
9101-2186 Ser A
9101-2186/A, Series A, Rev A Request Quote
Common misspellings:
  • 9l01-2186
  • 91o1-2186
  • 910l-2186
  • 9101-2l86
  • 9101-21b6
  • 91012186

Dimensions For 9101-2186

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 9101-2186

Resolutions For 9101-2186

Technical Specifications
ManufacturerRockwell Automation
BrandAllen-Bradley
Continuous Output Power2 kWatt
Operating Temperature32-140 F (0-50 C)
Peak Shunt Power4.5 kWatts
Continuous Shunt Power50 Watts
Peak Output Current20 amps/Phase
Continuous Output Current10 amps/Phase
Part Number/Catalog No.9101-2186
Weight15 lbs (5 kg)
AC Input Voltage100-240 Vac rms Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.9101-1822
Series Ultra 200
TypeDigital Servo Drive
Part Number/Catalog No.9101-1646
Weight31.00 lbs (14.06 kg)
ManufacturerRockwell Automation
BrandAllen-Bradley
Continuous Output Power2 kWatt
Operating Temperature32-140 F (0-50 C)
Peak Shunt Power4.5 kWatts
Continuous Shunt Power50 Watts
Peak Output Current20 amps/Phase
Continuous Output Current10 amps/Phase
Part Number/Catalog No.9101-2186
Weight15 lbs (5 kg)
AC Input Voltage100-240 Vac rms Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.9101-1822
Series Ultra 200
TypeDigital Servo Drive
Part Number/Catalog No.9101-1646
Weight31.00 lbs (14.06 kg)
About

The 9101-2186 Ultra Plus Positioning Drive Module by Allen-Bradley is a single-axis digital and positioning drive which provides microprocessor-based high-performance velocity control and programmable positioning in a single compact and cost-effective unit. Unlike most drives, the 9101-2186 combines both drive control and positioning control in a single processing package, thereby eliminating the need for an analog interface. The drive has an input line voltage range of 115 to 240V AC (single-phase) at 50-60Hz, with a peak output current of 20A, and an output power of 2kW.  The drive has a factory built-in shunt regulator, with 4.5kW peak power and in applications that require higher power dissipation, and an external shunt kit (25 Ohms, 200W or 18 Ohms, 900W) with a peak power of 6000W, is connected to it. The 9101-2186 has an integral power supply with single-phase output power, and it also has a non-volatile memory which stores information for customizing the drive for any application, and it stores set parameters to match both the encoder feedback device and the drive. The drive, like every drive in the PDM series, has a microprocessor, with a 20 MHz internal clock, connected to the memory unit and with an access time of 0.016s.


The 9101-2186 uses the incremental encoder with 750 KHz encoder input frequency, for motor feedback, and it also has high-performance Analog and Digital I/O with scan functions. The 9101-2186 has velocity and positioning loop control, which are both digital closed for consistent results, and it utilizes 4-function math and logic functions for high-performance control. It allows for easy configuration and settings of drive’s parameters, using the exclusive Allen-Bradley Graphical Motion Control Language (GML), with the Microsoft Windows interface, which integrates software programming and system debugging to save configuration time and solve motion control problems. The drive also has an optional Operator terminal with a 4-line x 20-character vacuum fluorescent display and a sealed membrane keypad with tactile feedback, which allows for easy and convenient access to drive’s status, program variables, the control function, and message display. The 9101-2186 communicates with a PC or an operator terminal with 2 RS-232/RS-422 serial communication ports, with selectable 1200 to 19,200 baud rates, and with up to 63 node addresses. The drive is designed to operate at a temperature between 0 and 50 °C, without de-rating, and it is stored at a temperature range of -40 to 80 °C. The drive weighs approximately 5Kg, and it has shipping dimensions of 349.3mm x 111.8mm x 226.8mm.

Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 9101-2186. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 9101-2186. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions

Please refer to the manual for more information about the 9101-2186 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
9101-2186 Ser A
9101-2186/A, Series A, Rev A Request Quote

Common misspellings:
  • 9l01-2186
  • 91o1-2186
  • 910l-2186
  • 9101-2l86
  • 9101-21b6
  • 91012186
