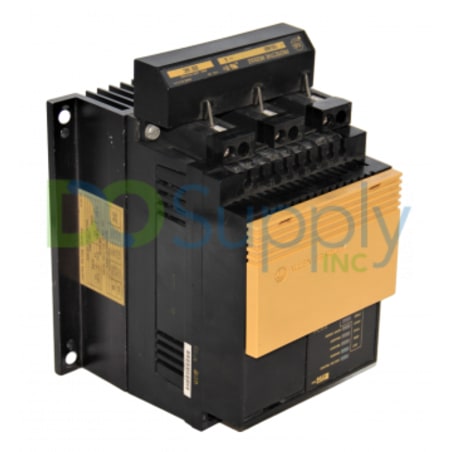

Allen Bradley SMC-2 150-A24NCDA

Product image is representative; revision or series may vary. Contact us to request a specific version.

150-A24NCDA

|
Need a Specific Revision?

The 150-A24NCDA part from Allen Bradley is a smart motor controller designed to efficiently manage three-phase motors. Operating within a specified voltage range, this unit is capable of handling various power ratings depending on the input voltage, making it versatile for different applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 150-A24NCDA

ManufacturerAllen Bradley
Product TypeSmart Motor Controller
Product LineSMC-2
Part Number150-A24NCDA
Weight7.06 lbs (3.20 kg)
Phase Type3 Phase
Min. Frequency50 Hz
Max. Frequency60 Hz
Min. Input Line Voltage500 V
Max. Input Line Voltage600 V
Max. Power Rating @ 220 V5.5 kW
Max. Power Rating @ 380 V11 kW
Max. Power Rating @ 415 V11 kW
Max. Power Rating @ 500 V15 kW
Current Rating24 A
Enclosure TypeOpen Type
Relative Humidity5 to 95% (non-condensing)
Operating Temperature Range0 to 50°C
Storage Temperature Range-40 to 85°C
View as PDF
Request a Repair

The Allen Bradley 150-A24NCDA smart motor controller represents a powerful solution for motor management in three-phase applications. It is designed to operate with input line voltages ranging from a minimum of 500 V to a maximum of 600 V. The unit supports a frequency range between 50 Hz and 60 Hz, which makes it adaptable for various motor types and applications.

Depending on the input voltage, the 150-A24NCDA can provide varying power ratings. At 220 V, it can deliver up to 5.5 kW of power, while at 380 V and 415 V, the maximum rating reaches 11 kW. For applications requiring higher voltage, at 500 V, it can handle a maximum power rating of 15 kW. The current rating for this controller is specified at 24 A, ensuring its significance in industrial scenarios.

Constructed as an open type enclosure, this device maintains a regular environment for its internal components. It operates efficiently within a temperature range of 0 to 50°C while supporting storage conditions from -40 to 85°C. Moreover, the relative humidity tolerance ranges from 5% to 95% without condensation, enabling its use in various environmental conditions. The 150-A24NCDA smart motor controller offers an effective means of motor control for industrial applications.

Revision Part #Also known as
150-A24NCDA Ser A150-A24NCDA/A, Series A, Rev A
150-A24NCDA Ser B150-A24NCDA/B, Series B, Rev B
Don't see your particular revision? Contact us now.
