The 150 SMC-2 series of smart motor controllers from Allen-Bradley is a family of solid-state controllers that are designed for starting 3-phase squirrel-cage induction motors. This family of controllers supports 3 standard starting modes, namely the soft start, full voltage start, and the current limit start. Soft stopping is available as an option but it requires an interface module. The SMC-2 controllers can be used in either series controller configurations or in motor controller configurations. The SMC-2 controllers comply with multiple standards, including the CE, CSA, and UL standards. The SMC-2 controllers are available in the following 8 current ratings which are 5, 9, 16, 24, 35, 54, 68, and 97 Amps. The SMC-2 controllers support 200 to 230 Volts AC, 380 to 460 Volts AC, and 500 to 575 Volts AC voltage classes. The line frequencies that are supported include 50 and 60 Hertz.
The SMC-2 controllers are used in series with electromechanical motor starters. This configuration leads to a simple installation process, allows for the use of existing electromechanical starters with retrofits, and enables easy setup with digital adjustments. The interface option for the SMC-2 controllers provides direct on and off control and configurable auxiliary contacts and it also provides the optional soft stop feature. The energy-saver feature on SMC-2 controllers provides saves energy when the motor is unloaded or when it is running a light load. An optional protective module can be ordered which contains MOVs and protects the SCR from surges and noise on the power line. The SMC-2 controllers are available in open, IP 65, and IP 54 rated enclosures. The working temperature range is from 32 to 122 degrees Fahrenheit. The maximum recommended altitude for the installation of the SMC-2 controllers is 2000 meters above sea level.
Browse available units in our catalog of SMC-2.
With a controller rating of 5.0 A, this model handles a power of 1 horsepower at both 200 V and 230 V. At 460 V and 575 V, it can manage up to 3 horsepower. This unit is designed for an input voltage
Open Solid-State Controller 35 Amps 400-480 VAC Input with 150-NA Interface Module
This model is designed for 3-phase applications, accommodating a current rating of 35 Amperes. It provides robust rated power across a range of 18.5 to 22 kilowatts and supports wire sizes of AWG 8. T
This controller can handle input voltages from a minimum of 380 V to a maximum of 480 V, with a frequency range of 50 to 60 Hz. The 150-A24NBDD-8B4 features an open type enclosure and supports protect
This smart motor controller operates at a minimum frequency of 47 Hz and can go up to 63 Hz. It provides a maximum power rating of 5 HP at 460 VAC and 4 kW at 380–415 VAC, ensuring efficient performan
Designed as a motor controller, the 150-A24NB model is compatible with input voltages of 400 VAC to 480 VAC. It manages power ratings up to 15 HP at 480 VAC and provides a control voltage of 100 to 12
Configured as a smart motor controller, the 150-A16NB is designed for 3-phase operation with an input voltage acceptance of 380-480 VAC. It supports operating frequencies of both 50 Hz and 60 Hz. The

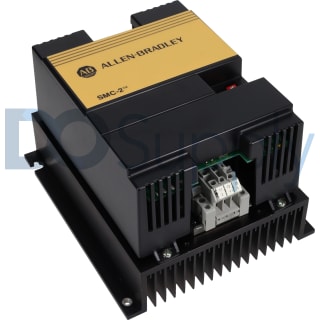

This motor controller supports frequencies of 50/60 Hz and offers multiple start modes, including soft start, current limit, and full voltage options. With a current rating of 35 A, it also includes p
Designed for versatility, the 150-A54NB offers an initial torque range from 0% to 90% of the locked rotor torque. It features built-in SCANport communication capability to enhance connectivity with ot
This smart motor controller features a microprocessor control type and is designed for 3-phase applications. It can handle up to 15 kW output and is equipped with protections against motor stalls and
