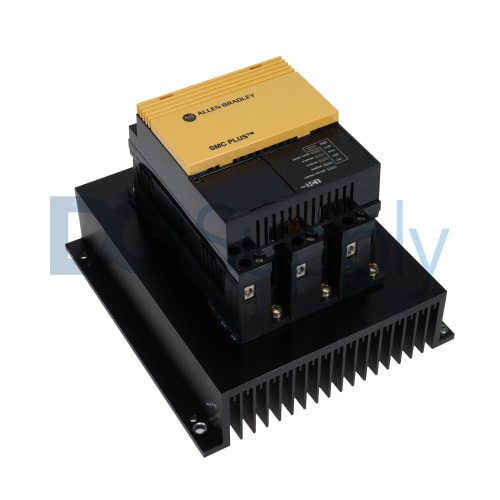

150-A35NBDC

The Allen Bradley part number 150-A35NBDC represents a robust smart motor controller within the SMC-2 series. This unit is engineered to operate with a minimum input voltage of 380 volts and a maximum of 480 volts, making it suitable for a wide range of industrial motor control applications. Its design supports three-phase power systems, ensuring compatibility with diverse operational setups.

With a maximum current rating of 35 amps, this controller is capable of managing significant loads efficiently. The device can achieve different levels of power output based on the supplied voltage: it can deliver 10 kW when connected at 220 V, increasing to 18.5 kW at 380 V, and reaching 22 kW when supplied with either 415 V or 500 V. This flexibility enhances its suitability for various motor types and applications.

The operating frequency range is set between 50 Hz and 60 Hz, enabling it to function effectively in different environments. Furthermore, the controller is designed to withstand relative humidity levels between 5% and 95%, provided that condensation does not occur, allowing it to operate reliably in many conditions.

Thermal performance is another key feature, with the device capable of functioning in ambient temperatures from 0 to 50°C. For storage, it can endure more extreme conditions, with a temperature range of -40 to 85°C. This smart motor controller, encapsulated in an open-type enclosure, is ideal for environments where mechanical confinement is minimal, promoting easier access and maintenance.
