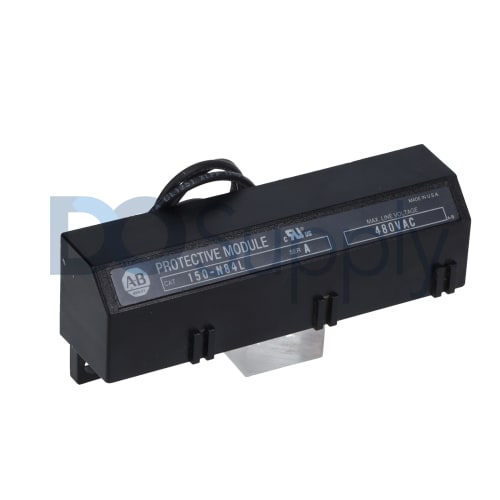

Allen Bradley SMC Dialog Plus 150-N84L

Product image is representative; revision or series may vary. Contact us to request a specific version.

150-N84L

|
Need a Specific Revision?

The Allen Bradley 150-N84L serves as a protective module for motor applications. Designed to work seamlessly with SMC Dialog Plus and SMC Plus controllers, this device provides essential overcurrent and phase loss protection across a current range of 97 to 360 A and operates at a voltage rating of 480 VAC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 150-N84L

ManufacturerAllen Bradley
Product TypeProtective Modules
Product LineSMC Dialog Plus
Part Number150-N84L
UPC662072255865
Weight0.38 lbs (0.17 kg)
Device TypeProtective Module (Soft Starter Accessory)
ApplicationMotor Protection for SMC Dialog Plus / SMC Plus
Current Range97–360 A
Voltage Rating480 VAC
Frequency50/60 Hz
Protection FunctionsOvercurrent and Phase Loss Protection
InstallationField-installed Module
Controller CompatibilitySMC Dialog Plus / SMC Plus Controllers
Control MethodElectronic Protection with Thermal Modeling
Operating ModeSupports Slow-speed Operation
MountingIntegrated Within Controller Assembly
Request a Repair

Allen Bradley's part number 150-N84L represents a protective module specifically designed for motor protection in systems utilizing SMC Dialog Plus or SMC Plus controllers. With a current handling capacity ranging from 97 to 360 A, this accessory ensures effective protection against overcurrent and phase loss situations. Its voltage rating stands at 480 VAC, allowing compatibility with typical industrial power systems.

Functioning effectively within 50/60 Hz frequencies, this module is field-installed, facilitating straightforward integration into existing configurations. It is specially crafted to support slow-speed operations, enhancing its adaptability to various motor control requirements. The control method utilized is based on electronic protection coupled with thermal modeling, allowing it to respond adeptly to changing operating conditions.

The 150-N84L is designed for seamless integration, as it can be mounted directly within the controller assembly, saving both space and effort during installation. The UPC for this protective module is 662072255865, enabling easy cataloging and inventory management. Overall, the 150-N84L module provides essential functionalities to ensure the reliable operation of motors within their respective applications.
