2098-DSD-005

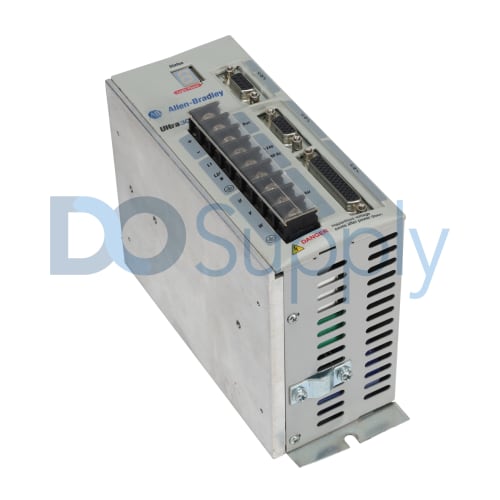

The Allen-Bradley 2098-DSD-005 is an Ultra 3000 Digital Servo Drive. The 2098-DSD-005 has dimensions of 7.8 x 5.68 x 2.86 in. (198.12 x 144.27 x 72.64 mm). The weight of this module is approximately 1.8 kg (4.1 lbs). The operating temperature of this module is 0-55 °C (32-131 °F). The storage temperature of this module is -40-70 °C (-40-158 °F). The relative humidity of this module is 5-95% without condensation. The Allen-Bradley 2098-DSD-005 has an operating shock of 15 g (3 pulses, 11 ms). The nonoperating shock of this module is 30 g (3 pulses, 11 ms). The 2098-DSD-005 also follow some Electromagnetic Compatibility (EMC) standards. The Allen-Bradley 2098-DSD-005 has passed the EN 50081-2 EMC - Generic Emission Standard, Part 2 - Industrial Environment. This module has passed EN 50082-2 EMC – Generic Immunity Standard, Part 2 - Industrial Environment. This module is a single-phase AC drive used for control of most industrial servo motors. The 2098-DSD-005 module has an input voltage range between 100 and 240V AC at an input frequency of 47-63 Hertz. The Nominal Input Current (AC) of this module is 5 A Root Means Square. This module also has a 2.5A (0 to peak) Continuous Output Current and a 7.5A (0 to peak) Intermittent Output Current. To reduce the risk of an unpredictable motor response, tune your motor with no loads the first time, then reinstall the load and perform the tuning procedure again to achieve an accurate operating response.
