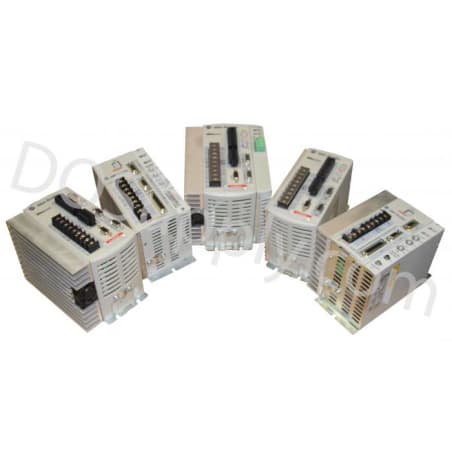

2098-DSD-150

The Allen-Bradley 2098-DSD-150 is a 3-phase 230V AC input Analog Servo Drive that is part of the high-performance and flexible Bulletin 2098 Ultra3000 Drive Systems series. It has an input frequency of 47-63 Hz and the main AC input current of 46 A nominal rms and 68 A at zero-peak maximum inrush. A short period of inrush current is required upon power initialization. This results in the need for a dual element time delay or slow blow fuse. For UL applications it is compatible with a Class J LPJ-60SP Bussmann Fuse. The 65A/150A 2098-DSD-150 Ultra3000 Analog Drive features flexibility in functions with its four current sourcing outputs and eight current sinking inputs – all general purpose and user-selectable. It has one normally-open output relay rated at 30V DC max 1 A max. Its front panel houses standard high-density D-shell female connectors for motor power, AC input power, and passive shunt resistor connections. The 2098-DSD-150 also provides a CN3 9-pin serial port connector, a CN2 15-pin motor feedback connector, and a CN1 44-pin user I/O connector. Plus, monitoring and troubleshooting are made simpler by its logic power status and seven-segment status indicators. The 2098-DSD-150 uses the Smart Motor Technology that automatically detects specific motor connection with its values. This safeguards against incorrect motor replacement and greatly reduces commissioning time.
