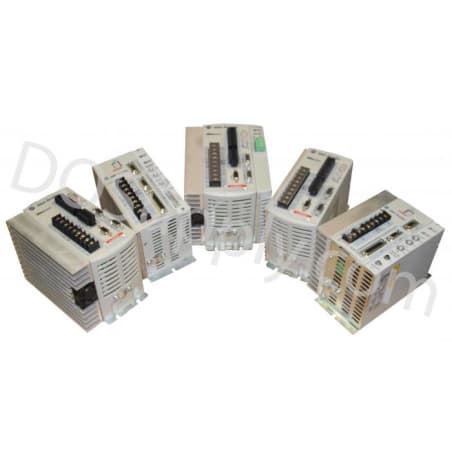

2098-DSD-HV030-DN

The 2098-DSD-HV030-DN is an Allen-Bradley Digital Servo Drive (DSD) from the Ultra 3000 series. This servo drive is mainly used to control the rotation of a connected servo motor, regulating the position of the connected load according to the requirements of the machine or process. This is also referred to as motion or position control which is typically used in automated assembly lines, manufacturing, and product sorting. The 2098-DSD-HV030-DN comes with an integrated DeviceNet communication interface. This communication interface enables the drive to send I/O and control data to partner automation systems such as Programmable Logic Controllers (PLC) such as Allen-Bradley’s PLC and SLC series, Programmable Automation Controllers (PAC) such as the Logix controller platform particularly CompactLogix and ControlLogix controllers, Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) system. With this integration capability, the 2098-DSD-HV030-DN can be controlled and configured remotely and automatically. The 2098-DSD-HV030-DN electrical parameters include input supply voltage of 230 VAC / 460 VAC, 3-Phase, 50-60 Hz, and input current of 4 Amperes. This servo drive delivers an output voltage of 230 VAC / 460 VAC, 3-Phase, programmable frequency range of 0-400 Hz, maximum continuous output current of 7 amperes, and maximum peak output current of 14 Amperes. The output power of this drive is 1.5 kW at 115 VAC voltage input and 3 kW at 230 VAC voltage input. It has a Bus overvoltage rating of 425 VDC. This drive is compatible with an Allen-Bradley sine/cosine and incremental external encoders from the product Bulletin of 842HR, 844D, 847H, and 847T.

The Allen-Bradley 2098-DSD-HV030-DN is an Ultra 3000 Digital Servo Drive Module (with DeviceNet). The 2098-DSD-HV030-DN weighs 8.55 kg (18.8 lbs). This module has 9.54 x 14.2 x 5.46 in (242.2 x 360.7 x 138.7 mm) dimensions. The relative humidity is 5-95% without condensation. The operating temperature is 0 -55 deg. C (32-131 deg. F) and the storage temperature is -40-70 deg. C (-40-158 deg. F). The Allen-Bradley 2098-DSD-HV030-DN has an operating shock of 15 g (3 pulses, 11 ms). The non-operating shock of the module is 30 g (3 pulses, 11 ms). This module is designed to maintain optimum functionality at 2.5 g vibration. This module can operate at altitudes of up to 1000 m (3280 ft) without derating. The Allen-Bradley 2098-DSD-HV030-DN has internal shunt resistance of 120 Ohms. The Shunt-On of this module is 800V DC. The Shunt-Off of this module is 750V DC. The bus capacitance of this module is 470 μF. The bus overvoltage of this module is 810V DC. The 2098-DSD-HV030-DN is intended for a Pollution Level Industry Environment 2, in excessive Category II applications (as defined in the IEC 60664-1). If you connect or disconnect the cable when the power is on, an electrical arc can occur. This can cause an explosion in hazardous locations. Ensure that the power is switched off and that the area is not dangerous.
