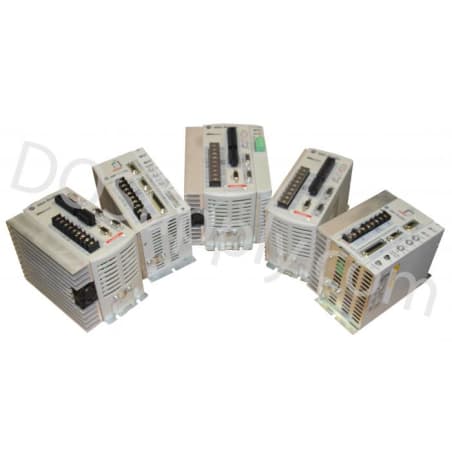

2098-DSD-HV030X-DN

The Allen-Bradley 2098-DSD-HV030X-DN is an Ultra 3000I digital high-voltage servo drive. This three-phase drive comes with a DeviceNet interface and a 230-480V AC RMS input voltage. It has a continuous output current of 11 A and an intermittent output current of 22 A, both at 0-pk. Its main AC input currents are 4 A nominal at 460V AC RMS and 6 A maximum inrush at 460V AC RMS. This drive's auxiliary AC input currents are 47 A maximum inrush at 230V AC at 0-pk, 68 A maximum inrush at 480V AC at 0-pk, 0.55 A nominal at 230V AC RMS, 0.35 A nominal at 360V AC, and 0.25 A nominal at 480V AC. The 2098-DSD-HV030X-DN drive has a bus overvoltage of 810V DC and a bus capacitance of 470 µF. It also has a shunt-on of 800V DC, shunt-off of 750V DC, and an internal shunt resistance of 120 Ω. The internal shunt of this drive has a 100 W continuous power and 5.3 kW peak power, while the external shunt has a 120 Ω resistance at 0/5%, 3 kW continuous power, and 5.3 kW peak power. It also has continuous power outputs of 1.5 kW at 230V AC input and 3 kW at 460V AC input. The energy absorption capabilities of the 2098-DSD-HV030X-DN drive are 15 J at 230V AC input with a 230V motor, 129 J at a 230V AC input with 460V motor, and 55 J at 460V AC input. The operating vibration of the 2098-DSD-HV030X-DN drive is 5-2000 Hz at 2.5 g peak with a maximum displacement of 0.015 inches or 0.0006 mm and shock is 15 g, 11 ms half-sine. Its ambient operating temperature ranges from 0-55 ËšC and non-operating temperature ranges from -40-70 ËšC. It also has a non-condensing relative humidity of 5-95% and a maximum operating altitude of 1500 m that derates by 3% per 300 m above 1500 m. It has an approximate weight of 8.55 kg or 18.8 lbs and measures 9.54 x 14.2 x 5.46 inches.
