2098-DSD-HV050X-DN

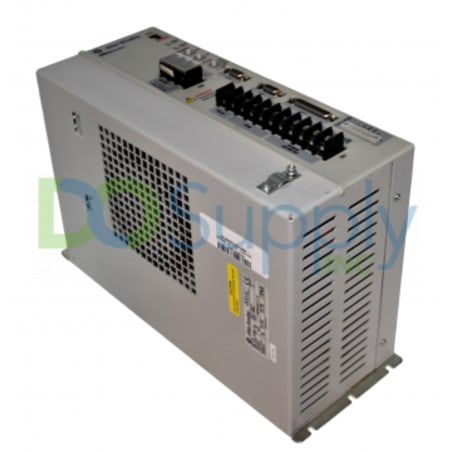

The Allen-Bradley 2098-DSD-HV050X-DN is an Indexing Ultra 3000I digital high-voltage servo drive. It comes with a DeviceNet interface and an input voltage of 230-480V AC. This three-phase drive has an AC input frequency of 47-63 Hz and a bus capacitance of 470 µF. Its main AC input currents are 7 A nominal for 460V AC RMS and 6 A maximum inrush for 460V AC. The auxiliary AC input currents of this drive are 47 A maximum inrush for 230V AC (0-pk), 68 A maximum inrush for 480V AC (0-pk), 0.55 A nominal for 230V AC RMS, 0.35 A nominal for 360V AC RMS, and 0.25 A nominal for 480V AC RMS. Peak output currents are 15.6 A for RMS and 22 A for 0-pk and continuous output currents are 7.8 A for RMS and 11 A for 0-pk. The internal shunt resistance of the 2098-DSD-HV050X-DN drive is 120 Ω. The shunt-on is 400V DC at 230V AC input and 800V DC at 480V AC input and the shunt-off is 375V DC at 230V AC input and 750V DC at 480V AC. Its internal shunt has a continuous power of 100 W and a peak power of 5.3 W, while its external shunt has a continuous power of 3 W, a peak power of 5.3 kW, and a resistance of 120 Ω at 0/5%. This drive also has bus overvoltages of 410V DC at 230V AC input and 810V DC at 480V AC input. The 2098-DSD-HV050X-DN drive also has energy absorption capabilities, particularly 15 J for 230V AC input with 230V motor, 129 J for 230V AC input with 460V motor, and 55 J for 480V AC input. Its continuous power outputs are 2.5 kW for 230V AC input and 5 kW for 480V AC input. The ambient operating temperature of this drive is 0-55 ËšC and storage temperature is -40-70 ËšC. It has a vibration of 5-2000 Hz at 2.5 g peak, with a maximum displacement of 0.0006 mm or 0.015 inches, and a shock of 15 g, 11 ms half-sine. This drive also has an operating altitude of 1500 m with a derating rate of 3% per 300 m above 1500 m and a non-condensing relative humidity of 5 to 95%. The entire drive measures 9.54 x 14.2 x 5.46 inches and weighs 8.55 kg or 18.8 lbs.
