2098-DSD-HV100X-DN

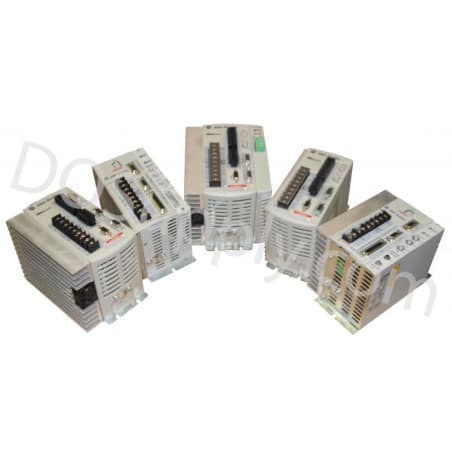

The Allen-Bradley 2098-DSD-HV100X-DN is an Ultra3000 multi-axis digital servo drive. This three-phase drive has a nominal AC input voltage that ranges from 230-480V RMS, with its absolute limits at +/- 10%. It has a 400V Class input voltage, continuous output power of 15 kW, and continuous output current of 24 A RMS. This drive has a wattage of 10 KW, an input of 14 Amps, and outputs of 16.3 Amps RMS, 23 Amps for continuous and 32.5 Amps RMS, 46 Amps for peak. The main AC input current at 460 Volts is 14 Amps for nominal and 6 Amps for the maximum inrush. The auxiliary AC input current is 0.55 Amps nominal at 230 Volts AC RMS, 0.35 Amps nominal at 360 Volts AC RMS, 0.25 Amps nominal at 480 Volts AC, 47 Amp maximum inrush at 230 Volts AC (0 to pk), and 68 A maximum inrush at 480 Volts AC. It also comes with a frequency rating of 47 to 63 Hertz and a 1 N.O. relay contact. The continuous power outputs are 5 kW for a 230 Volt AC input and 10 kW for a 460 Volts AC input.

The bus capacitance of the 2098-DSD-HV100X-DN drive is 705 µF and internal shunt resistance is 40 Ohms. This drive has a shunt-on of 800 Volts DC and a shunt-off of 750 Volts DC, as well as a bus overvoltage of 810 Volts DC. For the internal shunt, its continuous power is 200 Watts and peak power is 16 kW. The external shunt has a continuous power of 10 kW, a peak power of 16 kW, and a resistance of 40 Ohms at 0.5%. The 2098-DSD-HV100X-DN drive's energy absorption capabilities are 22 J for 230 Volts AC input with a 230 Volts motor, 194 J for 230 Volts AC input with a 460 Volts motor, and 82 J for a 460 Volts AC input. It has an indexing drive communication interface a and standalone control command interface. A field-programmable flash memory is also available with this drive. The operating temperature is 0 to 55 degrees Celsius and the storage temperature is -40 to 70 degrees Celsius. It also has a non-condensing relative humidity of 5 to 95% and an operating altitude of 1500 meters. This drive also has an operating vibration of 5 to 2000 Hertz at 2.5 G peak and an operating shock of 15 G, 11-millisecond half-sine pulse. The entire drive measures 9.54 x 5.97 x 14.2 inches.
