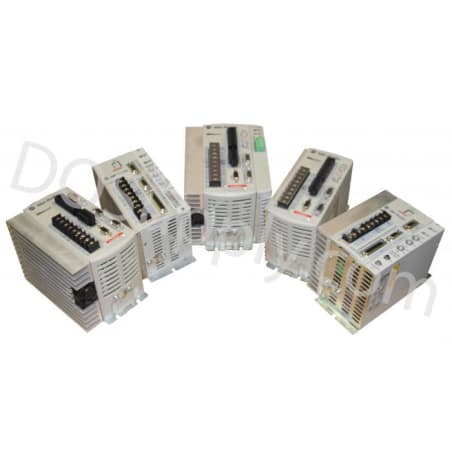

2098-IPD-HV050-DN

The Allen-Bradley 2098-IPD-HV050-DN is an Ultra 5000 intelligent positioning servo drive. It is a three-phase drive that has an AC input voltage of 230-480V AC RMS and an AC input frequency of 47-63 Hz. It has the main AC input currents of 7 A nominal at 460V AC RMS and 6 A maximum inrush of 460V AC RMS. This drive also has auxiliary AC input currents of 0.55 A nominal at 230V AC RMS, 0.35 A nominal at 360V AC RMS, 0.25 A nominal at 480V AC RMS, 47 A maximum inrush at 230V AC at 0-pk, and 68 A maximum inrush at 480V AC RMS. The peak output currents of the 2098-IPD-HV050-DN drive are 15.6 A for RMS and 22 A for 0-pk. Its continuous output currents are 7.8 A for RMS and 11 A for 0-pk. This drive also has a bus capacitance of 470 µF and bus overvoltages of 410V DC at 230V AC input and 810V DC at 480V AC input. Its internal shunt resistance is 120 Ω, shunt-ons are 400V DC at 230V AC input and 800V DC at 480V AC input, and shunt offs are 375V DC at 230V AC input and 750V DC at 480V AC input. The 2098-IPD-HV050-DN drive's internal shunt has a continuous power of 100 W and a peak power of 5.3 kW and its external shunt has a continuous power of 5 kW, a peak power of 5.3 kW, and a resistance of 120 Ω at 0/5%. It also has continuous power outputs of 2.5 kW at 230V AC input and 5 kW at 480V AC input. This drive also has energy absorption capabilities of 15 J at 230V AC input with 230V motor, 129 J at 230V AC input with 460V motor, and 55 J at 480V AC input. Its ambient operating temperature is 0-55 ËšC and its non-operating temperature is -40-70 ËšC. It also has a maximum operating altitude of 1500 m that derates by 3% for every 300 m above 1500 m, as well as a non-condensing relative humidity of 5-90%. It also comes with a vibration of 10-2000 Hz at 2 g peak with a maximum displacement of 0.015 inches during both operation and non-operation and a non-operating shock of 15 g 11 ms half-sine.
