1760-IB12XOW4IF

Revisions: Ser A

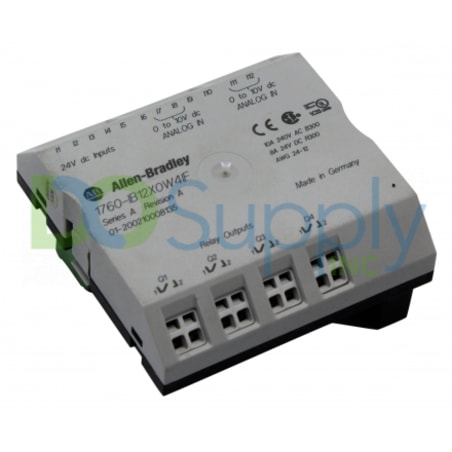

Description: The Allen-Bradley/Rockwell Automation 1760-IB12XOW4IF I/O module is a GFX I/O module from the 1760 Pico Controllers product line. It is equipped with 12 DC inputs and 4 relay outputs. The 1760-IB12XOW4IF GFX I/O module?s inputs cannot be connected to different lines but the outputs all can. This module weighs about 0.33 pounds and its dimensions are 88 x 90 x 44 millimeters when it is not fitted into a host processor and 88 x 90 x 25 millimeters when it is fitted into its host processor. The 1760-IB12XOW4IF GFX I/O module can support 4 analog inputs and 4 high-speed inputs among its 12 total inputs.
Available Now
Request a quote for 1760-IB12XOW4IF

Description: The Allen-Bradley/Rockwell Automation 1760-IB12XOW4IF I/O module is a GFX I/O module from the 1760 Pico Controllers product line. It is equipped with 12 DC inputs and 4 relay outputs. The 1760-IB12XOW4IF GFX I/O module?s inputs cannot be connected to different lines but the outputs all can. This module weighs about 0.33 pounds and its dimensions are 88 x 90 x 44 millimeters when it is not fitted into a host processor and 88 x 90 x 25 millimeters when it is fitted into its host processor. The 1760-IB12XOW4IF GFX I/O module can support 4 analog inputs and 4 high-speed inputs among its 12 total inputs.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1760-IB12XOW4IF.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.6 with 7 reviews

    Technical Specifications for 1760-IB12XOW4IF

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number1760-IB12XOW4IF
Product TypeGFX I/O Module
Digital Inputs12
Available Analog Inputs4
Available High-speed Inputs4
Rated Voltage24V DC
On-state Current2.2-3.3 mA
Outputs4
Output TypeRelay
Dimensions88.1 mm x 90 mm x 25 mm
Weight150g
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1760-IB12XOW4IF has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1760-IB12XOW4IF units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number1760-IB12XOW4IF
Product TypeGFX I/O Module
Digital Inputs12
Available Analog Inputs4
Available High-speed Inputs4
Rated Voltage24V DC
On-state Current2.2-3.3 mA
Outputs4
Output TypeRelay
Dimensions88.1 mm x 90 mm x 25 mm
Weight150g
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1760-IB12XOW4IF has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1760-IB12XOW4IF units instead of migration.

s

About 1760-IB12XOW4IF

The 1760-IB12XOW4IF module is a GFX I/O module from Allen-Bradley/Rockwell Automation. It has 12 digital inputs, 4 inputs usable as analog inputs, and 4 inputs usable as high-speed inputs. Additionally, the 1760-IB12XOW4IF module has a rated voltage of 24 Volts DC and a signal delay of 20 milliseconds (with the debounce feature on). The module also features 4 analog inputs with a resolution analog of 0.01 Volts. However, the module’s signal range is between 0 Volts DC and 10 Volts DC. The 1760-IB12XOW4IF module has an input impedance of 11.2 kiloOhms, a frequency of less than 3 kiloHertz for its frequency counters, an incremental counter encoder, and for its high speed up and down counters.



Note that the Allen-Bradley/Rockwell Automation 1760-IB12XOW4IF module features a square wave pulse. When fitted, the module measures 3.5 inches in width, 3.54 inches in height, and 0.98 inches in depth. But, when not installed, the module measures 3.5 inches in width, 3.54 inches in height, and 1.73 inches in depth. The 1760-IB12XOW4IF module, as with other GFX I/O modules, connects to the back of the GFX processor. However, only 1 GFX I/O module and 1 Pico expansion I/O module can be connected to a single GFX-70 controller. The Allen-Bradley 1760-IB12XOW4IF module also supports relay outputs. Note that when connecting a relay contact, a voltage of 250 Volts AC should not be exceeded. If the voltage exceeds this threshold, a flashover may occur at the contact, resulting in damage to the device or a connected load. Additionally, relay outputs can be connected to different lines.



Technical Description of 1760-IB12XOW4IF

The Allen-Bradley 1760-IB12XOW4IF GFX I/O Module has 12 Digital Inputs and 4 Outputs. It also has 4 Available Analog Inputs and 4 Available High-speed Inputs.

Repair Services for 1760-IB12XOW4IF

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1760-IB12XOW4IF. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1760-IB12XOW4IF

Please refer to the manual for more information about the 1760-IB12XOW4IF such as the wiring diagrams, data sheets and migration or obsolescence details.
