The 1760 Pico controllers have been manufactured by Allen-Bradley/Rockwell Automation and all of their components are intended to perform different tasks, mostly in building and machine applications. Pico controllers are components that include a built-in logic module, a timer, a counter, and a real-time clock. Some of the controllers’ functions are to connect output relays and markers, select timing relays that have different functions, display texts with variables and loads, and save and protect programs with passwords. The Allen-Bradley 1760 Pico controllers feature different equipment with different voltage ratings that include 120 to 240 Volts AC, 24 and 12 Volts DC, and finally 24 Volts AC controllers. Besides Pico controllers, this series features different equipment that is intended to enhance the function of Pico controllers. This equipment is expansion modules, expansion module connectors, memory modules, and input and output simulators.


The Allen-Bradley 1760 Pico controllers’ external parts consist of an incoming power source, several inputs, status LEDs, buttons, sockets for memory modules, outputs, an LCD, and a write-on surface mechanism. Some of these parts such as the status indicator and the display enable the users to check the status of the controllers. Before installing the Allen-Bradley 1760 Pico controllers, these controllers must be connected to the expansion modules before proceeding with the mounting. It is recommended to install the Pico controllers in an enclosure, in a switch cabinet, or on a distribution board. When mounting the controllers, clearances of 3 centimeters must be left on each side to promote ventilation. The maximum operating temperature of these controllers is 55 degrees Celsius, which might change if they are used in an enclosure or a cabinet.

Allen-Bradley 1760 Pico Controllers

Technical Specifications

  • 1760 Pico Controllers input-voltage range from 12V DC, 24V DC, 24V AC, or 120-240V AC
  • 10-12 display language options
  • Enclosure ratings:
    • IP20
    • IP65
    • NEMA 4X
  • Communication options:
    • 1760-RM-PICO remote processor for point-to-point serial interface
    • DeviceNet module
    • Pico-Link
  • Operation modes:
    • Run mode/stop mode
    • Terminal mode
    • Card mode
  • Features included
    • EEPROM memory
    • DC and analog inputs
    • Real-time clock
    • Password security available

Allen-Bradley 1760 Pico Controllers

Technical Specifications

  • 1760 Pico Controllers input-voltage range from 12V DC, 24V DC, 24V AC, or 120-240V AC
  • 10-12 display language options
  • Enclosure ratings:
    • IP20
    • IP65
    • NEMA 4X
  • Communication options:
    • 1760-RM-PICO remote processor for point-to-point serial interface
    • DeviceNet module
    • Pico-Link
  • Operation modes:
    • Run mode/stop mode
    • Terminal mode
    • Card mode
  • Features included
    • EEPROM memory
    • DC and analog inputs
    • Real-time clock
    • Password security available
1760 Pico Controllers Description Stock Level
1760-CBL-PC02Allen-Bradley Pico Expansion IO Cable with PC- Pico GFX Processor communication
In Stock
1760-CBL-PM02Allen-Bradley Pico Expansion IO Cable with PC-Pico Processor communication
In Stock
1760-DU The 1760-DU Display Unit has a Yellow/green LCD Backlight and 132 x 64 Pixels.
Available Now
1760-DUB The 1760-DUB Display Unit with Push Buttons has a Yellow/green LCD Backlight and 132 x 64 Pixels.
In Stock
1760-IA12XOW4I The 1760-IA12XOW4I GFX I/O Module has a 0.2-0.5 mA On-state Current and a 120/240V AC Rated Voltage.
Available Now
1760-IA12XOW6IAllen-Bradley Pico Expansion IO Expansion Module with (12) Digital inputs and (6) Isolated Relay outputs
In Stock
1760-IB12XOB4IF The 1760-IB12XOB4IF GFX I/O Module has a 2.2-3.3 mA On-state Current and a 24V DC Rated Voltage.
In Stock
1760-IB12XOB4IOF The 1760-IB12XOB4IOF GFX I/O Module has a 2.2-3.3 mA On-state Current and a 24V DC Rated Voltage.
Available Now
1760-IB12XOB8Allen-Bradley Pico Expansion IO Expansion Module with (12) Digital inputs and (8) Transistor outputs
In Stock
1760-IB12XOW4IF The 1760-IB12XOW4IF GFX I/O Module has a 2.2-3.3 mA On-state Current and a 24V DC Rated Voltage.
In Stock
1760-IB12XOW4IOF The 1760-IB12XOW4IOF GFX I/O Module has a 2.2-3.3 mA On-state Current and a 24V DC Rated Voltage.
In Stock
1760-IB12XOW6IAllen-Bradley Pico Expansion IO Expansion Module with (12) Digital inputs and (6) Isolated Relay outputs
Call

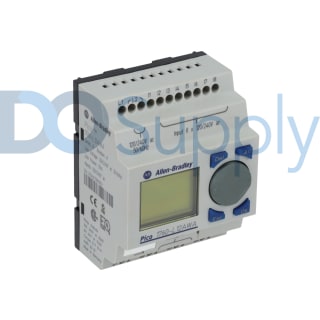

1760-L12AWAAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
In Stock
1760-L12AWA-NCAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
Call
1760-L12AWA-NDAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
Call
1760-L12BBBAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Transistor outputs
In Stock
1760-L12BBB-NDAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Transistor outputs
Call
1760-L12BWBAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
In Stock
1760-L12BWB-NCAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
Call
1760-L12BWB-NDAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
Call
1760-L12DWDAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
In Stock
1760-L12DWD-NDAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
In Stock
1760-L12NWNAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
In Stock
1760-L12NWN-NDAllen-Bradley Pico Expansion IO Pico Controller with (8) Digital inputs and (4) Relay outputs
Call
1760-L18AWA

The Allen-Bradley 1760-L18AWA Pico controller has 12 inputs and 6 isolated relay outputs. This controller is no...

In Stock

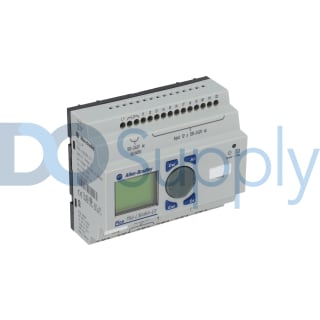

1760-L18AWA-EXAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
Call
1760-L18AWA-EXNDAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
Call
1760-L18BWB-EXAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
In Stock
1760-L18BWB-EXNDAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
In Stock
1760-L18DWD-EXAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
Call
1760-L18DWD-EXNDAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
Call
1760-L18NWN-EXAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
Call
1760-L18NWN-EXNDAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (6) Relay outputs
Call
1760-L20BBB-EXAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (8) Transistor outputs
In Stock
1760-L20BBB-EXNDAllen-Bradley Pico Expansion IO Pico Controller with (12) Digital inputs and (8) Transistor outputs
Call
1760-LDF The 1760-LDF Processor Unit has a 10 ms Voltage Dips and a 125 mA Input Current.
In Stock
1760-LDFA The 1760-LDFA Processor Unit has a 10 ms Voltage Dips and a 125 mA Input Current.
Available Now
1760-LDFC The 1760-LDFC Processor Unit has a 10 ms Voltage Dips and a 125 mA Input Current.
In Stock
1760-LDFCA The 1760-LDFCA Processor Unit has a 10 ms Voltage Dips and a 125 mA Input Current.
Available Now
1760-MM1Allen-Bradley Pico Expansion IO Memory Module with 8K storage, for 12-Point Controllers
Call
1760-MM2Allen-Bradley Pico Expansion IO Memory Module with 16K storage, for 18-Point Controllers
In Stock
1760-MM2BAllen-Bradley Pico Expansion IO Memory Module with 32K storage
In Stock
1760-MM3The 1760-MM3 is a 256K Memory Module.
Available Now
1760-OW2Allen-Bradley Pico Expansion IO Expansion Module with (2) Relay Outputs inputs
Call
1760-PICOPRO-PC02Allen-Bradley Pico Expansion IO PicoSoft Software and GFX Cable
Call
1760-PICOSOFTPROAllen-Bradley Pico Expansion IO PicoSoft Pro Programming Software
Call
1760-RPLCONNAllen-Bradley Pico Expansion IO Connector for Expansion Module
Call
1760-SIMAllen-Bradley Pico Expansion IO Input and Output Simulator
Call
