1786-RPFRL - In Stock | Allen Bradley PLC 1786 Repeaters

1786-RPFRL

Rated 5 with 10 reviews

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.


credit cards accepted
better business bureau

1786-RPFRL

Revisions: Ser A Ser B
Description: Allen-Bradley 1786 ControlNet Repeaters with Fiber Ring Repeater Module type, 62.5/125 micron multi-mode fiber fiber type, and 5V DC power
In Stock Ships Today
Request a quote for 1786-RPFRL

Description:

Allen-Bradley 1786 ControlNet Repeaters with Fiber Ring Repeater Module type, 62.5/125 micron multi-mode fiber fiber type, and 5V DC power


DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A Ser B

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1786-RPFRL.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 5 with 10 reviews

    Technical Specifications for 1786-RPFRL

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1786-RPFRL/B
Product LineControlNet Repeater
Repeater TypeFiber Ring Repeater Module
Fiber Type62.5/125 micron multi-mode fiber
Fiber Operating Wavelength1300 nm
Attenuation Levels15 dB
Input Power5V DC
Typical Repeater Distance0-10km
Backplane Current Draw570 mA
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1786-RPFRL/B
Product LineControlNet Repeater
Repeater TypeFiber Ring Repeater Module
Fiber Type62.5/125 micron multi-mode fiber
Fiber Operating Wavelength1300 nm
Attenuation Levels15 dB
Input Power5V DC
Typical Repeater Distance0-10km
Backplane Current Draw570 mA
s

About 1786-RPFRL

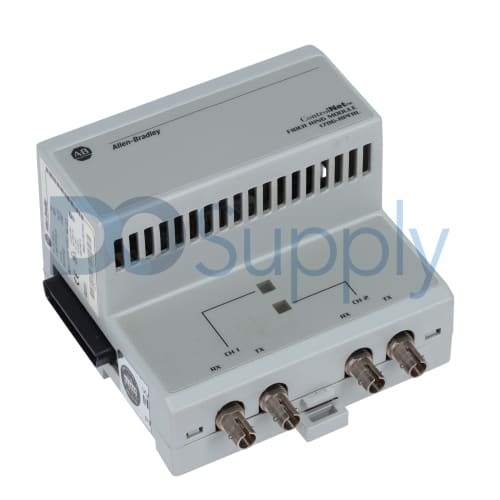

The Allen-Bradley 1786-RPFRL module is a ControlNet fiber optic ring repeater module. It supports fiber media redundancy through the use of a ring topology which enables long transmission ranges, protection against electromagnetic interference, and ground isolation between the nodes. The distance between fiber repeaters depends on a number of factors including the fiber quality, number of splices, and number of connectors. For the 1786-RPFRL module, the loss on the fiber links must be less than 15 dB. The total length of the fiber ring is limited by the ControlNet standard to 20 kilometers or less. Plastic or ceramic ST fiber connectors should be used with the module. Metal connectors are not supported.



The 1786-RPFRL module provides 2 fiber channels, status indicators for activity on each fiber channel, and a relay contact connector for system status and communication updates. The power input requirements for the module are 570 milliamps at 5 Volts DC. The power requirements of the backplane are 2.8 Watts (3.02 Watts maximum). The supported communication rate is 5 Mbps. The module can be mounted in any orientation. The maximum voltage for the relay contactor is 30 Volts DC. The minimum and maximum currents for the relay contactor are 1 milliamp and 900 milliamps, respectively. The isolation voltage rating is 50 Volts continuous. The wire size recommended for use with the 1786-RPFRL module is 22 to 14 AWG solid or stranded copper wire which is rated at 75 degrees Celsius or higher. The 1786-RPFRL module is an open module and it complies with T5 North American temperature code. The temperature of the air around the 1786-RPFRL module should never exceed 60 degrees Celsius.



Repair Services for 1786-RPFRL

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1786-RPFRL/B. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 1786-RPFRL

Please refer to the manual for more information about the 1786-RPFRL such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1786-RPFRL Ser A
1786-RPFRL/A, Series A, Rev A Request Quote
1786-RPFRL Ser B
1786-RPFRL/B, Series B, Rev B Request Quote
Common misspellings:
  • l786-RPFRL
  • 17b6-RPFRL
  • 1786-RPFR1
  • 1786RPFRL

Dimensions For 1786-RPFRL

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 1786-RPFRL

Resolutions For 1786-RPFRL

About

Technical Specifications for 1786-RPFRL

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1786-RPFRL/B
Product LineControlNet Repeater
Repeater TypeFiber Ring Repeater Module
Fiber Type62.5/125 micron multi-mode fiber
Fiber Operating Wavelength1300 nm
Attenuation Levels15 dB
Input Power5V DC
Typical Repeater Distance0-10km
Backplane Current Draw570 mA
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1786-RPFRL/B
Product LineControlNet Repeater
Repeater TypeFiber Ring Repeater Module
Fiber Type62.5/125 micron multi-mode fiber
Fiber Operating Wavelength1300 nm
Attenuation Levels15 dB
Input Power5V DC
Typical Repeater Distance0-10km
Backplane Current Draw570 mA

About 1786-RPFRL

The Allen-Bradley 1786-RPFRL module is a ControlNet fiber optic ring repeater module. It supports fiber media redundancy through the use of a ring topology which enables long transmission ranges, protection against electromagnetic interference, and ground isolation between the nodes. The distance between fiber repeaters depends on a number of factors including the fiber quality, number of splices, and number of connectors. For the 1786-RPFRL module, the loss on the fiber links must be less than 15 dB. The total length of the fiber ring is limited by the ControlNet standard to 20 kilometers or less. Plastic or ceramic ST fiber connectors should be used with the module. Metal connectors are not supported.



The 1786-RPFRL module provides 2 fiber channels, status indicators for activity on each fiber channel, and a relay contact connector for system status and communication updates. The power input requirements for the module are 570 milliamps at 5 Volts DC. The power requirements of the backplane are 2.8 Watts (3.02 Watts maximum). The supported communication rate is 5 Mbps. The module can be mounted in any orientation. The maximum voltage for the relay contactor is 30 Volts DC. The minimum and maximum currents for the relay contactor are 1 milliamp and 900 milliamps, respectively. The isolation voltage rating is 50 Volts continuous. The wire size recommended for use with the 1786-RPFRL module is 22 to 14 AWG solid or stranded copper wire which is rated at 75 degrees Celsius or higher. The 1786-RPFRL module is an open module and it complies with T5 North American temperature code. The temperature of the air around the 1786-RPFRL module should never exceed 60 degrees Celsius.



Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1786-RPFRL/B. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1786-RPFRL/B. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions

Please refer to the manual for more information about the 1786-RPFRL such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1786-RPFRL Ser A
1786-RPFRL/A, Series A, Rev A Request Quote
1786-RPFRL Ser B
1786-RPFRL/B, Series B, Rev B Request Quote

Common misspellings:
  • l786-RPFRL
  • 17b6-RPFRL
  • 1786-RPFR1
  • 1786RPFRL
