Allen Bradley 1786 Repeaters

The Allen-Bradley 1786 series of repeaters includes repeaters that are used in applications where the enlargement of any industrial network is needed. It is recommended to use these repeaters between 2 existing pieces of equipment without the need to add more equipment. These series include different kinds of equipment such as dual copper module repeaters, short-distance module repeaters, medium-distance fiber module repeaters, and fiber ring repeaters (regular and extended). Besides enlarging a network, repeaters are also used to create a point-to-point topology that is a star or a ring topology. As mentioned before, this series includes different kinds of modules that can match different industrial application requirements.

The Allen-Bradley 1786 repeaters provide digital retiming of the ControlNet data, pass power to the repeater modules, and they come with status indicators and a removable power supply rated at 24 Volts DC. These status indicators can be interpreted together to deduce whether the module is experiencing a failure or whether there are communication problems with the rest of the network.  The Allen-Bradley 1786 repeaters operate with a power consumption of 1.5 to 6.8 Watts and an input voltage of 18 to 36 Volts DC. These repeaters work mainly with ControlNet data. Along with their adapters, the repeaters must be safely secured to both sides of the DIN locks. This will ensure that operations and communications functions are performed safely. The Allen-Bradley 1786 repeaters are shipped with 1 removable terminal block, 1 terminator for an unused port and 2  DIN rain locks each. The repeaters can be mounted in any direction, but a horizontal orientation is preferred. A maximum operating temperature of 60 degrees Celsius is allowed.

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.
Learn more

Browse 1786 Repeaters

Browse available units in our catalog of 1786 Repeaters.

1786-BNC

This product supports crimp connections at 75 Ohms and fits various coaxial trunk cable sections. It is suitable for installation in nonhazardous locations and can be easily connected by twisting and

In Stock Ships Today
5.0

1786-CTK

The Allen-Bradley 1786-CTK Coax Toolkit is a must-have for technicians involved in the installation, maintenance, and troubleshooting of ControlNet applications in any industrial system. It provides t

Call
4.8

1786-FS300

The Allen-Bradley 1786-FS300 200-Micron cable assembly is the ideal fiber-optic media to use in ControlNet industrial networks for links located up to 300 meters (984.2 feet) apart. It features a pre-

In Stock Ships Today
5.0

1786-RG6F

The Allen-Bradley 1786-RG6F ControlNet coax cables are specifically designed for ControlNet implementation in a wide variety of industries. They are usually installed in segments of varying lengths, c

Call
4.8

1786-RPA

Allen-Bradley 1786 ControlNet Repeaters with Modular Repeater Adapter type, RG6 copper coax fiber type, and 24V DC power Used and Surplus In Stock

In Stock Ships Today
4.9

1786-RPCD

Allen-Bradley 1786 ControlNet Repeaters with Coaxial Repeater Module type, RG6 copper coax fiber type, and 5V DC power Used and Surplus In Stock

In Stock Ships Today
4.8

1786-RPFM

Allen-Bradley 1786 ControlNet Repeaters with Repeater Medium-Distance Fiber Module type, 62.5/125 micron multi-mode OM-1 fiber fiber type, and 5V DC power Used and Surplus In Stock

In Stock Ships Today
5.0

1786-RPFRL

Allen-Bradley 1786 ControlNet Repeaters with Fiber Ring Repeater Module type, 62.5/125 micron multi-mode fiber fiber type, and 5V DC power Used and Surplus In Stock

In Stock Ships Today
4.9

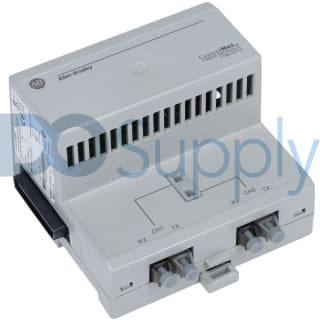

1786-RPFS

Allen-Bradley 1786 ControlNet Repeaters with Repeater Short-Distance Fiber Module type, 200/ 230 micron HCS (hard-clad silica) fiber fiber type, and 5V DC power Used and Surplus In Stock

In Stock Ships Today
4.9
Showing 1-10 of 15 results

Allen-Bradley 1786 ControlNet Repeaters

Technical Specifications

  • 1768 ControlNet Repeaters available in coax (copper) or fiber media options
  • Maximum input-power current of 1.6 A at 5V DC from the repeater adapter to the repeater module
  • Backplane current draw of either 300mA, 400mA, or 570mA
