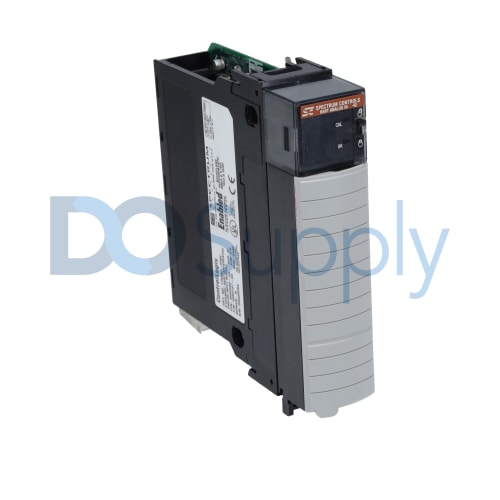

Allen Bradley ControlLogix 1756SC-IF8H

Product image is representative; revision or series may vary. Contact us to request a specific version.

1756SC-IF8H

|
Need a Specific Revision?

The Allen-Bradley/Spectrum 1756SC-IF8H HART analog I/O module requires a single slot and it features 8-channel I/O with three terminals per channel. The unit is part of the ControlLogix system and it features a current range of 0 to 20 milliAmps or 4 to 20 milliAmps. The unit has a resolution of 16 to 21 bits and it uses the IEEE floating point 32-bit data format.

Out of stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1756SC-IF8H

ManufacturerAllen Bradley
CategoryPLCs
Product LineControlLogix
Part Number1756SC-IF8H
Weight2.00 lbs (0.91 kg)
TypeHART analog I/O module
ModeCurrent
MountingChassis
Number of slots1
AIFM typeFeed-through
Number of channels8-channel input / output with 3 terminals per channel
Current0 to 20 milliAmps, 4 to 20 milliAmps
AccuracyBetter than 0.1%
Resolution16 o 21 bits
Data format32-bit, floating point per IEEE
Operating temperature0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage temperature-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Request a Repair

The 1756SC-IF8H module is an Allen-Bradley/Spectrum Controls analog I/O module that is available through the 1756 ControlLogix product family. The ControlLogix components like this one are extremely reliable and they allow communication through several different networks. The ControlLogix parts are mostly chassis-based and are easy to maintain. The most popular networks that are used for communication between these components are the ControlNet and EtherNet/IP networks. Every ControlLogix component is made according to international industrial regulations and meets all the applicable standards. The 1756SC-IF8H analog I/O module includes certifications from the C-Tick, CE, CSA, cULus, and FM standards. The controllers used with this module require either a removable terminal block (RTB) or wiring interface module (IFM) for all the field-side wiring.

The 1756SC-IF8H analog I/O module is enabled for communication through HART networks and it requires only one slot for installation, like other components of similar dimensions. The unit operates in the current mode and it features the feed-through AIFM type. The 1756SC-IF8H module has 8 available channels for either input or output. It should be mentioned that each channel comes with three terminals. The accuracy of the unit is better than 0.1% and it uses the IEEE (32-bit, floating point) data format. The resolution of the module is from 16 to 21 bits and its current rating is 0 to 20 milliAmps or 4 to 20 milliAmps. In regard to environmental conditions, the unit features a relative humidity range of 5 to 95% (non-condensing) and an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
