Warranty: | 1 year DO Supply Warranty Included |
Shipping: | Worldwide shipping via DHL, UPS, Fedex, and TNT |
Repairs: | We offer repair service for the 2080-IQ4. |
Exchange: | Exchange credit for your defective unit available. |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2080-IQ4 |
Product Type | Digital Plug-in Module |
DC On-state Voltage min./max. | 9.0/30V DC |
DC On-state Current min. | 2.0 mA @ 9V DC |
DC On-state Current nom. | 3.0 mA @ 24V DC |
DC On-state Current max. | 5.0 mA |
DC Off-state Voltage max. | 5V DC |
DC Off-state Current max. | 1.5 mA |
IEC Input Compatibility | Type 3 |
AC On-state Voltage min./max. | 10.25V AC/30V AC |
AC On-state Current min./max. | 2mA @ 9V AC/ 5.0 mA |
Enclosure Type Rating | None(open-style) |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2080-IQ4 |
Product Type | Digital Plug-in Module |
DC On-state Voltage min./max. | 9.0/30V DC |
DC On-state Current min. | 2.0 mA @ 9V DC |
DC On-state Current nom. | 3.0 mA @ 24V DC |
DC On-state Current max. | 5.0 mA |
DC Off-state Voltage max. | 5V DC |
DC Off-state Current max. | 1.5 mA |
IEC Input Compatibility | Type 3 |
AC On-state Voltage min./max. | 10.25V AC/30V AC |
AC On-state Current min./max. | 2mA @ 9V AC/ 5.0 mA |
Enclosure Type Rating | None(open-style) |

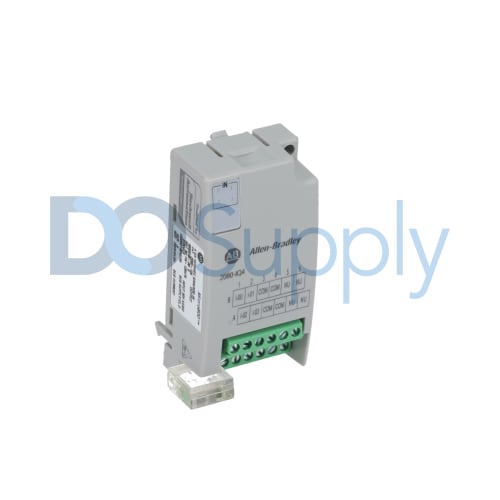

The 2080-IQ4 Micro 800 4 Channel Digital Input Module by Allen-Bradley is a digital plug-in module which provides transistor outputs for switching a wide range of 12-24V DC voltages to field loads and for detecting any 12-24V DC signals from field devices. The module has an ON-state minimum input voltage of 9V DC, with 30V DC max input, and a maximum DC input OFF-state voltage of 5V DC. It also has a nominal DC input ON-state current of 3 mA @ 24V DC, which maxes at 5mA, and it has an OFF-state current of 1.5 mA, with an IEC Type 3 compatibility input. The 2080-IQ4 has a user-selectable input impedance of >4 KΩ at 0-3V, 3.5 KΩ at 3-12V, and >4 KΩ to <10 KΩ at 12-30V DC, and it has an input filter time of 8-10ms (AC/DC), from ON to OFF. The module also has an AC input, with a maximum ON-state voltage of 30V AC (RMS), with an OFF-state voltage of 3.5V AC (RMS), and a maximum ON-state current of 5 mA.
The 2080-IQ4 has utilizes either the Panel or DIN Rail mounting options with a mounting torque of 0.2Nm (1.48lb-in), and it requires a terminal base screw with a screw torque of 0.22-0.25 Nm (1.95-2.21lb-in.), and it is enclosed in an open-style enclosure. It provides 50V isolation voltage, between the inputs and the backplane, tested at 720V DC for 60s, using the basic insulation, and the module circuitry is made of solid or stranded copper wire, with 1.3- 0.2 mm2 (16-24 AWG) wire size. It meets the T4 North America Temperature code and it has an operating temperature range of -20-65 oC (-4-149 oF), at 5-95% non-condensing relative humidity. It is built to withstand an operational vibration of 2 g at 10-500Hz, with an operational shock of 35G, using a panel mounting option, and it has a CISPR 11, Group 1, Class A Emission rating.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | Ask | ![]() |
Our highly skilled technicians can repair your 2080-IQ4. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Please refer to the manual for more information about the 2080-IQ4 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.
Revision Part # | Also Known as | Availability |
2080-IQ4 Ser A |
2080-IQ4/A, Series A, Rev A | Request Quote |
Size | |
Input Type | |
Panel Cutout Height | in mm |
Panel Cutout Width | in mm |
Terminal Height | in mm |
Terminal Width | in mm |
Terminal Overall Depth | in mm |
Terminal Mounted Depth | in mm |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2080-IQ4 |
Product Type | Digital Plug-in Module |
DC On-state Voltage min./max. | 9.0/30V DC |
DC On-state Current min. | 2.0 mA @ 9V DC |
DC On-state Current nom. | 3.0 mA @ 24V DC |
DC On-state Current max. | 5.0 mA |
DC Off-state Voltage max. | 5V DC |
DC Off-state Current max. | 1.5 mA |
IEC Input Compatibility | Type 3 |
AC On-state Voltage min./max. | 10.25V AC/30V AC |
AC On-state Current min./max. | 2mA @ 9V AC/ 5.0 mA |
Enclosure Type Rating | None(open-style) |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2080-IQ4 |
Product Type | Digital Plug-in Module |
DC On-state Voltage min./max. | 9.0/30V DC |
DC On-state Current min. | 2.0 mA @ 9V DC |
DC On-state Current nom. | 3.0 mA @ 24V DC |
DC On-state Current max. | 5.0 mA |
DC Off-state Voltage max. | 5V DC |
DC Off-state Current max. | 1.5 mA |
IEC Input Compatibility | Type 3 |
AC On-state Voltage min./max. | 10.25V AC/30V AC |
AC On-state Current min./max. | 2mA @ 9V AC/ 5.0 mA |
Enclosure Type Rating | None(open-style) |
The 2080-IQ4 Micro 800 4 Channel Digital Input Module by Allen-Bradley is a digital plug-in module which provides transistor outputs for switching a wide range of 12-24V DC voltages to field loads and for detecting any 12-24V DC signals from field devices. The module has an ON-state minimum input voltage of 9V DC, with 30V DC max input, and a maximum DC input OFF-state voltage of 5V DC. It also has a nominal DC input ON-state current of 3 mA @ 24V DC, which maxes at 5mA, and it has an OFF-state current of 1.5 mA, with an IEC Type 3 compatibility input. The 2080-IQ4 has a user-selectable input impedance of >4 KΩ at 0-3V, 3.5 KΩ at 3-12V, and >4 KΩ to <10 KΩ at 12-30V DC, and it has an input filter time of 8-10ms (AC/DC), from ON to OFF. The module also has an AC input, with a maximum ON-state voltage of 30V AC (RMS), with an OFF-state voltage of 3.5V AC (RMS), and a maximum ON-state current of 5 mA.
The 2080-IQ4 has utilizes either the Panel or DIN Rail mounting options with a mounting torque of 0.2Nm (1.48lb-in), and it requires a terminal base screw with a screw torque of 0.22-0.25 Nm (1.95-2.21lb-in.), and it is enclosed in an open-style enclosure. It provides 50V isolation voltage, between the inputs and the backplane, tested at 720V DC for 60s, using the basic insulation, and the module circuitry is made of solid or stranded copper wire, with 1.3- 0.2 mm2 (16-24 AWG) wire size. It meets the T4 North America Temperature code and it has an operating temperature range of -20-65 oC (-4-149 oF), at 5-95% non-condensing relative humidity. It is built to withstand an operational vibration of 2 g at 10-500Hz, with an operational shock of 35G, using a panel mounting option, and it has a CISPR 11, Group 1, Class A Emission rating.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | Ask | ![]() |
Our highly skilled technicians can repair your 2080-IQ4. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | Ask | ![]() |
Our highly skilled technicians can repair your 2080-IQ4. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Please refer to the manual for more information about the 2080-IQ4 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.
Revision Part # | Also Known as | Availability |
2080-IQ4 Ser A |
2080-IQ4/A, Series A, Rev A | Request Quote |
