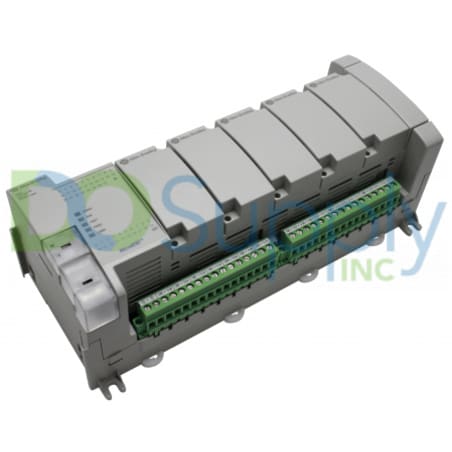

The 2080-LC30-48AWB Micro830 48-Point controller by Allen-Bradley is a low-cost brick-shaped controller with embedded inputs and outputs that are used for control of a wide range of industrial applications. The 2080-LC30-48AWB, like most members in its series, allows for the incorporation of up to 5 module plug-ins, and it supports both the panel and DIN Rail mounting options.

The 2080-LC30-48AWB has 48 I/O capacity (28 inputs and 20 output) points, with a Class 2 input voltage range of 20.4-26.4V DC, with a power output rating of 18.2W. It has C300 and R150 pilot duty ratings, with 250V (continuous) isolation voltage between the outputs and the aux and network, inputs and outputs, and DC I/O and aux and network by using reinforced insulation, tested for 60s at 3250V. The 2080-LC30-48AWB has 28 110V AC inputs with 132V AC operating voltage at 60Hz, and a maximum OFF-state voltage of 20V AC at 1.5mA peak OFF-state current. The input channel’s maximum ON-state current is 16mA at 132V AC, with a nominal input impedance of 10k? at 60Hz and maximum inrush current of 250mA at 120V AC.

The 2080-LC30-48AWB has 20 relay outputs with 265V AC maximum output voltage and 5A maximum current per common, with 10ms Turn ON/OFF time. It has a relay contact with 7.5 A and 0.75A Make and break amperage, and 1800VA and 180VA Make and Break power output. The 2080-LC30-48AWB offers AC input line filtering for all embedded inputs, and it also provides event input interrupt for inputs 0-15 only. It is installed using a terminal base, with a base screw torque of 0.6Nm (4.4lb-in), and it is installed using either the Panel mount or the DN Rail mounting option. The 2080-LC30-48AWB has an embedded USB 2.0 (non-isolated) port used for base programming, with 1 base-configured RS-232/485 (non-isolated) serial communication port, and it has 5 maximum base unit plug-ins.

The 2080-LC30-48AWB’s operating temperature range is -20-65 ºC (-4-149 ºF), at 5-95% relative humidity, and it can be stored at a -40-85 ºC (-40-185 ºF) range. It has an operational shock rating of of 25G, and it can resist a vibration of 2G at 10-500Hz, and it has 0.2 x 2.5 mm2 (24-12 AWG) stranded copper wire as circuit conductors. The 2080-LC30-48AWB has a net shipping weight of 0.725 kg (1.60 lb), with total dimensions of 90mm x 230mm x 80mm (3.54in x 9.06in x 3.15in), and it is cUL-us, CE, and C-TICK-certified.

The 2080-LC30-48AWB features built-in input and output channels. This particular controller comes with Twenty-Eight (28) AC input channels that accepts 110VAC voltage category. It has an OFF-state voltage of 20VAC, minimum ON-state current of 5 mA @ 79 VAC and maximum On-state current of 16 mA @ 132 VAC with nominal ON-state signal of 12 mA @ 120 VAC. Each input channels has configurable channel input filters with 8 ms defined as the default setting.

The 2080-LC30-48AWB also has 2Twenty (20) Relay output channels. This relay output channels are dry contact outputs that may be operated at voltage ranges of 5-125VDC and 5-265VAC range. Each channel has a minimum load current of 10 mA and maximum load current 2.0 A. Each common terminal of the relay output group has a maximum rating of 5 A and each channel exhibiting a maximum turn-OFF and turn-ON time of 10 ms.

The 2080-LC30-48AWB come with embedded communication ports such as One (1) USB Type B port, used for initial download and configuration of the controllers. For communication with Visualization systems such as Supervisory Control and Data Acquisition (SCADA) and Human Machine Interface (HMI) systems, the embedded RS232 / RS485 combo port may be used.
