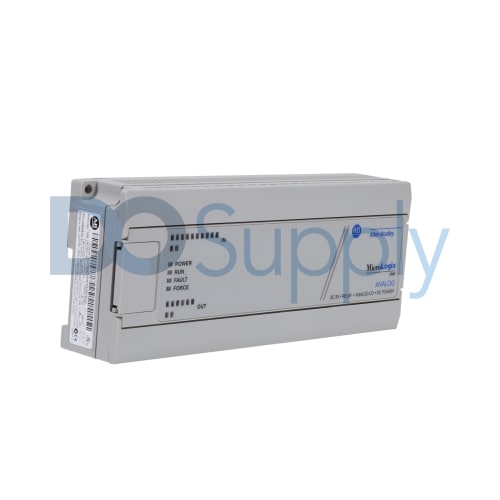

Allen Bradley Analog Circuit MicroLogix 1000 Controller featuring 20 I/O points, DC input power supply, Relay Outputs, and 8 Digital Outputs
DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
Warranty: | 1 year DO Supply Warranty Included |
Shipping: | Worldwide shipping via UPS, DHL, and TNT |
Repairs: | We offer repair service for the 1761-L20BWB-5A. |
Exchange: | Exchange credit for your defective unit available. |
Conditions: | We sell preowned surplus and refurbished parts. |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1761-L20BWB-5A |
Controller | MicroLogix 1000 |
I/O Count | 20 points |
Input Type | 24V dc |
Output Type | Relay |
Power Supply | 24V dc |
Analog Circuits | 4 Inputs, 1 Output |
Safety Feature | Master Control Relay |
Digital Outputs | 8 Contact Outputs |
UPC | 10662072766511 |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1761-L20BWB-5A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1761-L20BWB-5A units instead of migration.
