1762-L40BXBR - In Stock | Allen Bradley PLC MicroLogix 1200

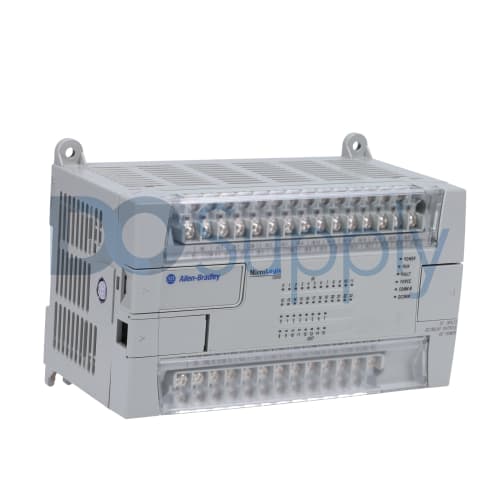

1762-L40BXBR

Rated 4.4 with 4 reviews

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.


credit cards accepted
better business bureau

1762-L40BXBR

Revisions: Ser A Ser B Ser C
Description: The Allen-Bradley 1762-L40BXBR is a MicroLogix 1200 Programmable Logic Controller (PLC). It features Twenty (20) 24VDC sink / source inputs, Four (4) fast 24VDC inputs, Eight (8) relay, Seven (7) 24VDC FET and One (1) High-speed 24VDC FET outputs. It has an embedded 8-pin mini-DIN communication port supporting RS232 (DF1) protocol. This controller is powered by an external 24VDC supply voltage.
In Stock Ships Today
Request a quote for 1762-L40BXBR

Description: The Allen-Bradley 1762-L40BXBR is a MicroLogix 1200 Programmable Logic Controller (PLC). It features Twenty (20) 24VDC sink / source inputs, Four (4) fast 24VDC inputs, Eight (8) relay, Seven (7) 24VDC FET and One (1) High-speed 24VDC FET outputs. It has an embedded 8-pin mini-DIN communication port supporting RS232 (DF1) protocol. This controller is powered by an external 24VDC supply voltage.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A Ser B Ser C

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1762-L40BXBR.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.4 with 4 reviews

    Technical Specifications for 1762-L40BXBR

ManufacturerRockwell Automation
BrandAllen-Bradley
DimensionsHeight: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm
Supported ProtocolsDF1, DH-485, ASCII, MODBUS
Communication PortsOne (1) 8-Pin mini-DIN serial port; One (1) Programming port
Load Current10A, minimum
Mechanical Cycles20,000,000
Relay Contact Rating24-125VDC; 120-240VAC
Output Circuit TypeRelay; FET
Input Circuit Type24 VDC
No. of Outputs(8) relay; (7) 24V dc FET; (1) high-speed 24V dc FET
No. of Inputs(20) 24V dc; (4) fast 24V dc
Power Supply24VDC
Shipping Weight2.4 pounds
Part Number/Catalog No.1762-L40BXBR
Ambient Operating Temp0 to 55 degrees Celsius
Power Supply Usage82 VA
Power supply inrush current120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms
SeriesMicroLogix 1200
Product TypeProgrammable Controller
Outputs(8) Relay, (7) 24V DC FET, and (1) High-Speed 24V DC FET
Input Power24V DC
Inputs(20) 24V DC and (4) Fast 24V DC
Inrush Input Currents150A at 30 seconds
Power Consumption40 Watts
Output Currents600mA at 5 Volts DC and 500mA at 24 Volts DC
Heat Dissipation27.9 Watts
Operating Temperature32 to 131 degrees Fahrenheit
Weight1.1 kilograms
Operating Shock30 G
Vibration5G at 10 to 500 Hertz
UPC10781180463881
ManufacturerRockwell Automation
BrandAllen-Bradley
DimensionsHeight: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm
Supported ProtocolsDF1, DH-485, ASCII, MODBUS
Communication PortsOne (1) 8-Pin mini-DIN serial port; One (1) Programming port
Load Current10A, minimum
Mechanical Cycles20,000,000
Relay Contact Rating24-125VDC; 120-240VAC
Output Circuit TypeRelay; FET
Input Circuit Type24 VDC
No. of Outputs(8) relay; (7) 24V dc FET; (1) high-speed 24V dc FET
No. of Inputs(20) 24V dc; (4) fast 24V dc
Power Supply24VDC
Shipping Weight2.4 pounds
Part Number/Catalog No.1762-L40BXBR
Ambient Operating Temp0 to 55 degrees Celsius
Power Supply Usage82 VA
Power supply inrush current120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms
SeriesMicroLogix 1200
Product TypeProgrammable Controller
Outputs(8) Relay, (7) 24V DC FET, and (1) High-Speed 24V DC FET
Input Power24V DC
Inputs(20) 24V DC and (4) Fast 24V DC
Inrush Input Currents150A at 30 seconds
Power Consumption40 Watts
Output Currents600mA at 5 Volts DC and 500mA at 24 Volts DC
Heat Dissipation27.9 Watts
Operating Temperature32 to 131 degrees Fahrenheit
Weight1.1 kilograms
Operating Shock30 G
Vibration5G at 10 to 500 Hertz
UPC10781180463881
s

About 1762-L40BXBR

The Allen-Bradley 1762-L40BXBR is a Programmable Logic Controller (PLC) that is part of the MicroLogix 1200 controller family. This controller has a total of 40 I/O channels, specifically Twenty (20) 24VDC sink / source inputs, Four (4) fast 24VDC inputs, Eight (8) relay, Seven (7) 24VDC FET and One (1) High-speed 24VDC FET outputs. Additionally, it has Two (2) Trim Potentiometers that may be configured to modify internal and memory registers for simulation and control purposes.

The 1762-L40BXBR has a compact assembly that supports installation of up to Six (6) 1762 expansion I/O modules. This controller also comes with Two (2) communication ports particularly One (1) programming port and One (1) primary communication interface. The primary communication interface may be used for interfacing with Human Machine Interface (HMI), Supervisory and Control Data Acquisition (SCADA) systems, gateways, converters and Intelligent Electronic Devices (IED). It may be used in micro and small applications in a wide variety of industries.



The 1762-L40BXBR has an operating temperature requirement of +0°C to +55°C (+32°F to +131°F) ambient and storage temperature of -40°C to +85°C (-40°F to +185°F) ambient with relative humidity of 5% to 95% relative humidity (non-condensing). This controller supports panel or DIN rail mounting with operating vibration of 10 to 500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hours each axis and shock rating of 30G; 3 pulses each direction, each axis.

Its relay output can support a maximum load of 1440VA, with 8A maximum current per group common rating, and a 30A overall per points load at 150V. The relay output also has a minimum Turn-OFF/ON time of 10 milliseconds, with 20,000,000 cycles relay life and a 10mA minimum load per point. The 1762-L40BXBR has 75 Volt DC isolation voltage between the input group-to-backplane and between the FET output group-to-backplane, dielectrically-tested at 1200 Volts AC for 1 second, and it has IEC Class 2 reinforced insulation between relay output group and relay output group and FET output group isolation, tested at 1836 Volts AC for 1 second. The controller has an operational temperature range of 32 to 131 degrees Fahrenheit, at 5 to 95% non-condensing relative humidity, and a storage temperature of -40 to 185 degrees Fahrenheit. The 1762-L40BXBR is designed to withstand a maximum operating shock of 30G and a vibration of 5G at 10 to 500 Hertz. It weighs approximately 1.1 kilograms (2.4 pounds), with net dimensions of 90 x 160 x 87 millimeters, and it is UL, c-UL, and CE certified.

FAQ for 1762-L40BXBR

What type of input does this module have?


The 1762-L40BXBR has 20 inputs at around 24 Volts DC and 4 Fast inputs at the same voltage.

What is this module’s heat dissipation?


The 1762-L40BXBR dissipates around 27.9 Watts of heat.

Can this module be purchased with a warranty?


Yes, the 1762-L40BXBR comes with a free one-year warranty from DO Supply, Inc.

Where can I send the 1762-L40BXBR to be repaired?


DO Supply, Inc. offers a variety of repair services for the 1762-L40BXBR.

Does the 1762-L40BXBR has an integrated real-time clock?


No. Only a memory module cover is supplied, covering the ports for installation of optional memory module or real-time clock module.

What is the power supply requirement of the 1762-L40BXBR?


The 1762-L40BXBR is powered using an external 24VDC supply voltage.

Technical Description of 1762-L40BXBR

The 1762-L40BXBR MicroLogix 1200 by Allen-Bradley is a programmable controller. This module has 16 outputs at 24 Volts DC sink/source. The 1762-L40BXBR Micrologix 1200 Controller has an input power of 24 Volts DC.

Repair Services for 1762-L40BXBR

Type Lead Time Price Action
Repair Service 2-4 weeks $1063cartAdd to Cart

Our highly skilled technicians can repair your 1762-L40BXBR. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1762-L40BXBR

Please refer to the manual for more information about the 1762-L40BXBR such as the wiring diagrams, data sheets and migration or obsolescence details.
