1746-P6

Revisions: Ser A

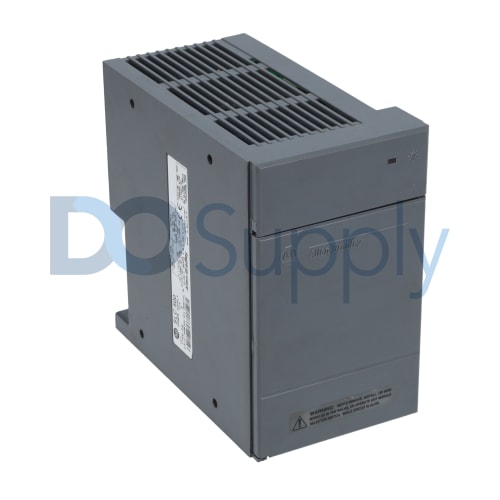

Description: The Allen-Bradley 1746-P6 is a SLC 500 Power Supply. This Power Supply has an Input Voltage of 48 Volts DC and an Input Voltage Range of 30-60 Volts DC. It requires an Input Power of 100 Watts while providing an Output Voltage Range of 18-30 Volts DC.
In Stock Ships Today
Request a quote for 1746-P6

Description: The Allen-Bradley 1746-P6 is a SLC 500 Power Supply. This Power Supply has an Input Voltage of 48 Volts DC and an Input Voltage Range of 30-60 Volts DC. It requires an Input Power of 100 Watts while providing an Output Voltage Range of 18-30 Volts DC.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1746-P6.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 5 with 9 reviews

    Technical Specifications for 1746-P6

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1746-P6
SeriesSLC 500
Module TypePower Supply
Input Voltage48 Volts DC
Input Voltage Range30-60 Volts DC
Input Power100 Watts
Inrush Current20 amps
Output Voltage Range18-30 Volts DC
FrequencyDC
Backplane Current (5 Volts)5 amps
Backplane Current (24 Volts DC)0.96 amps
Location1746 Chassis
Operating Temperature0-60 Celsius
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1746-P6
SeriesSLC 500
Module TypePower Supply
Input Voltage48 Volts DC
Input Voltage Range30-60 Volts DC
Input Power100 Watts
Inrush Current20 amps
Output Voltage Range18-30 Volts DC
FrequencyDC
Backplane Current (5 Volts)5 amps
Backplane Current (24 Volts DC)0.96 amps
Location1746 Chassis
Operating Temperature0-60 Celsius
s

About 1746-P6

The Allen-Bradley 1746-P6 is an SLC 500 power supply module. Its typical line power requirement is 100 VA, its nominal input voltage is 48V DC, and its line voltage that ranges from 30-60V DC. Its maximum inrush current is 20 A, maximum real input power is 100 W, and 24V DC user-power current capacity is 200 mA. It also has current capacities of 5 A at 5V DC and 0.96 A at 24V DC and a 24V DC user-power voltage range of 18-30V DC. The 1746-P6 power supply also comes with a user output current of 0.2 A at 24V DC. This power supply's terminals provide an isolated and non-fused 200 mA, 24V DC power supply.

The CPU hold up times of the 1746-P6 power supply for 0V are 1500 ms for no load and 5 ms for a full load. It also has an isolation between input terminals and backplane of 1800V AC RMS for 1 second. The operating temperature is 0-60 ËšC, with the current capacity derated 5% above 55 ËšC, and the non-operating temperature is -40-85 ËšC. It also has a non-condensing relative humidity of 5-95%.

For the 1746-P6 Series A power supply, when the SLC operation encounters a 24V DC user shutdown, the CPU process continues and the recovery procedure works to correct the overcurrent condition. To avoid this, you should monitor the 24V DC user output with a 24V DC input channel. Note that to power 24V DC loads and sensors, it is recommended that you use the PWR OUT +24V DC and POWER OUT COM terminals.

Note that the 1746-P6 power supply does not have a jumper installed. Its fuse protection is soldered into place and is meant to protect the power supply from fire hazards caused by short circuit conditions only. Up to 2 #14 AWG wires can be connected to a terminal. It measures 9.25 x 6.73 x 5.71 inches and is rack mountable.



Repair Services for 1746-P6

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your SLC 500 1746-P6. All of our repairs come with a 1 Year Warranty. Please contact us for additional information.

Revisions for 1746-P6

Please refer to the manual for more information about the 1746-P6 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1746-P6 Ser A
1746-P6/A, Series A, Rev A Request Quote
