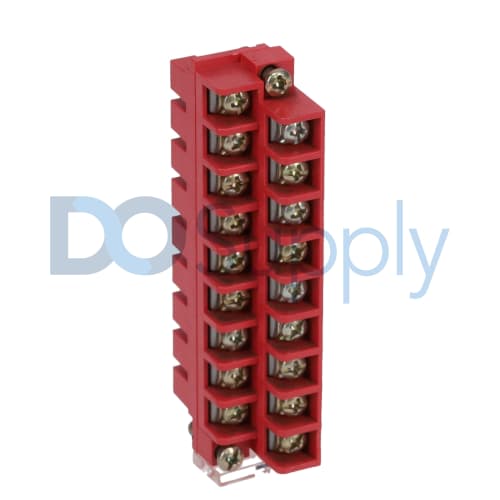

Allen Bradley SLC 500 1746-RT25R

Product image is representative; revision or series may vary. Contact us to request a specific version.

1746-RT25R

|

The Allen-Bradley 1746-RT25R is a SLC 500 Removable Terminal Block. This Removable Terminal Block has 16 I/O points and 18 Terminals with Gold Contact Plating.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1746-RT25R

ManufacturerAllen Bradley
CategoryPLCs
Product LineSLC 500
Part Number1746-RT25R
UPC662073982999
Weight0.25 lbs (0.11 kg)
Module TypeRemovable Terminal Block
I/O16
Terminals18
Contact PlatingGold
Backplane Current (5 Volts)215 milliamps
Update Time2 milliseconds
Slots1
I/O Connections1746-RT27, and 1746-RT26
I/O Connection1492-AIFMQS
Location1746 Chassis
Operating Temperature0-60 Celsius

The Allen-Bradley 1746-RT25R is a 1746 removable terminal block. It is a general-purpose red-coded terminal block. It has 16 inputs/outputs with 18 terminals at most. It is gold-plated to protect its contact plating. The 1746-RT25R removable terminal block is compatible with a variety of 1746 I/O AC modules. These are the 1746-IA16, -IM16, -OA16, -OAP12 modules. This replaceable terminal block allows you to remove I/O modules without rewiring. The color band on the module helps you match it to the correct designated type of terminal block. Installing a wired RTB to the wrong module can damage the circuitry of the module. Avoid Installing or removing the RTB when the SLC 500 system is switched ON. For secure wiring, the terminal block has self-lifting pressure plates. The 1746-RT25R has barriers on 3 sides to protect against AC wiring short.

Revision Part #Also known as
1746-RT25R Ser A1746-RT25R/A, Series A, Rev A
