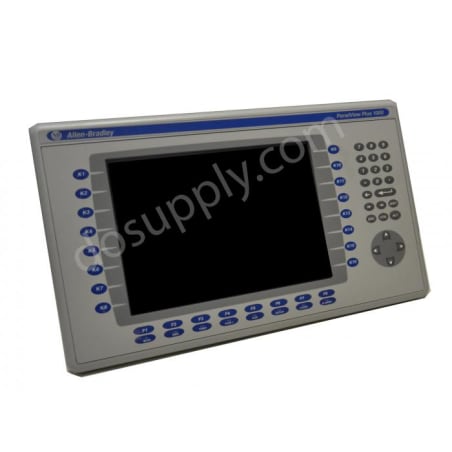

Allen Bradley Panelview Plus 1000 2711P-B10C15B2X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B10C15B2X

|
Need a Specific Revision?

The 2711P-B10C15B2X, a component of the Allen Bradley PanelView Plus 1000 series, is designed as an operator terminal. It features a 10.4-inch color display with a resolution of 640 x 480, making it suitable for various monitoring applications. This unit requires an input voltage of 85 to 264 VAC or 18 to 32 VDC, thus ensuring adaptability to multiple power systems available in industrial environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B10C15B2X

ManufacturerAllen Bradley
Product TypeOperator Terminal
Product LinePanelview Plus 1000
Part Number2711P-B10C15B2X
Weight32.00 lbs (14.51 kg)
Input Voltage (AC)85–264 VAC
Resolution640 x 480
Display Size10.4 in.
Input Voltage (DC)18–32 VDC
CommunicationControlNet
Frequency50/60 Hz
DisplayColor
Operating Temperature0–55 °C (32–131 °F)
Humidity5–95% non-condensing
MountingPanel Mount
Enclosure RatingNEMA 12, 4X / IP54 (Indoor)
Memory128 MB Flash, 128 MB RAM
Input TypeKeypad & Touchscreen
View as PDF
Request a Repair

The Allen Bradley 2711P-B10C15B2X serves as an operator terminal within the PanelView Plus 1000 series, designed to facilitate interaction between users and machines. It incorporates a 10.4-inch display characterized by a vibrant color output and a resolution of 640 x 480 pixels, providing clear visibility for operators during task execution. Users can interact with the device through both keypad and touchscreen inputs, enhancing versatility.

This terminal accepts a broad input voltage range encompassing both AC and DC, specifically 85 to 264 VAC and 18 to 32 VDC, making it adaptable across different operational settings. Its power frequency operates at 50/60 Hz, ensuring compatibility with various electrical infrastructures.

When it comes to environmental resilience, the PanelView terminal operates effectively in temperatures spanning from 0 to 55 °C. Additionally, it can handle humidity levels of 5 to 95% in non-condensing conditions, making it suitable for diverse industrial environments. The enclosure rating of NEMA 12 and 4X, corresponding to IP54, offers protection against dust and water ingress, ensuring reliable operation indoors.

Designed with 128 MB of both Flash and RAM memory, the unit provides ample storage for applications. Weighing 10 lbs (approximately 4.54 kg), this panel mount device is robust yet manageable, fitting seamlessly into control panels while delivering reliable performance in monitoring and controlling processes.
