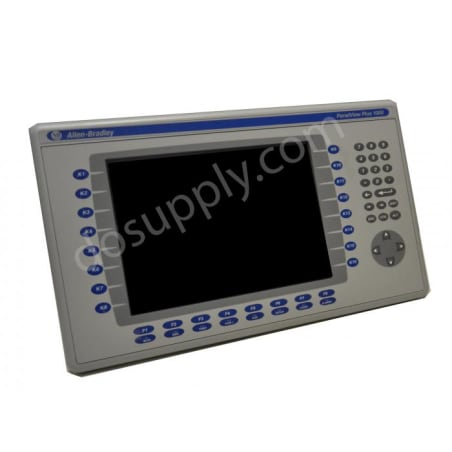

Allen Bradley Panelview Plus 1000 2711P-B10C15D6X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B10C15D6X

|
Need a Specific Revision?

The 2711P-B10C15D6X operator terminal from Allen Bradley is designed for robust applications. This unit is equipped with a 10.4-inch color display featuring a resolution of 640 x 480 pixels, making it suitable for detailed visuals.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B10C15D6X

ManufacturerAllen Bradley
Product TypeOperator Terminal
Product LinePanelview Plus 1000
Part Number2711P-B10C15D6X
Weight32.00 lbs (14.51 kg)
Resolution640 x 480
Display Size10.4 in.
CommunicationControlNet
DisplayColor
MountingPanel Mount
Logic Module Memory128 MB
Humidity5–95% non-condensing
Nominal Voltage24 VDC
Input Voltage18–32 VDC
Input TypeKeypad & Touchscreen
Storage Temperature-25–70 °C (-13–158 °F)
Enclosure RatingNEMA 12, 4X / IP54 (Indoor)
View as PDF
Request a Repair

The 2711P-B10C15D6X, an operator terminal from Allen Bradley's PanelView Plus 1000 series, is built for industrial efficiency. It features a vibrant 10.4-inch color display capable of a resolution of 640 x 480 pixels, which allows for precise graphical outputs essential for monitoring and controls.

The terminal provides communication through ControlNet and supports user input via both a keypad and a touchscreen interface, ensuring versatile interaction. Operational voltage for this terminal lies between 18 and 32 VDC, with a typical operational voltage of 24 VDC. It is equipped with 128 MB of logic module memory, enabling effective data management and application execution.

This unit is constructed to endure various indoors operational conditions with an enclosure rated NEMA 12 and 4X/IP54, providing sufficient protection against dust and moisture. It can function reliably in a humidity range of 5 to 95% RH, without the risk of condensation. Additionally, the device is capable of withstanding storage temperatures from -25 to 70 °C (-13 to 158 °F).

With a weight of 10 lbs (approximately 4.54 kg), this terminal is suitable for panel mounting in various setups, making it a practical choice for demanding industrial applications.
