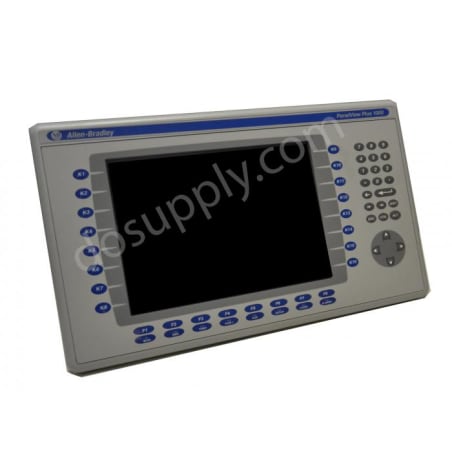

Allen Bradley Panelview Plus 1000 2711P-B10C4D2X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B10C4D2X

|
Need a Specific Revision?

The Allen Bradley 2711P-B10C4D2X functions as an operator interface within the Panelview Plus 1000 series. This unit features a 10.4-inch color display and operates using an input voltage of 18 to 32 VDC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B10C4D2X

ManufacturerAllen Bradley
Product TypeOperator Interface
Product LinePanelview Plus 1000
Part Number2711P-B10C4D2X
Weight5.88 lbs (2.66 kg)
Serial PortRS-232
Additional CommunicationNo
Power InputDC Power Input
Input Voltage18 to 32 VDC
Flash and RAM128 MB
Power Consumption70W max. (39W typical) for DC, 160VA max. (65VA typical) for AC
Altitude2000m (6562 ft)
KeypadYes
TouchYes
Screen Size10.4 in (264 mm)
Color DisplayYes
EtherNet Port10/100 Base T
USB PortYes
View as PDF
Request a Repair

The 2711P-B10C4D2X from Allen Bradley is categorized as an operator interface designed for versatile industrial applications. It boasts a 10.4-inch color display with dimensions of 264 millimeters, allowing for a clear and interactive user experience. This interface manages input voltage ranging from 18 to 32 VDC, ensuring sufficient power for operations. Its maximum power consumption under direct current is rated at 70 watts, while it can go up to 160 VA with alternating current inputs. This device features a complete keypad and also incorporates touchscreen functionality for ease of navigation and control. A RS-232 serial port provides essential data communication, but additional communication protocols are not included within this model. For connectivity, it offers a USB port and a 10/100 Base T Ethernet port, thereby enhancing its utility for data exchange within various setups. The module can function reliably at altitudes up to 2000 meters (6562 feet), making it suitable for various environmental conditions.
