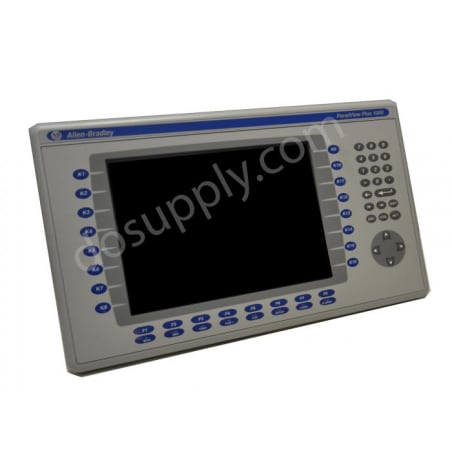

Allen Bradley Panelview Plus 1000 2711P-K10C15A7X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-K10C15A7X

|
Need a Specific Revision?

The 2711P-K10C15A7X serves as an operator interface terminal with a 10.4-inch color TFT LCD display. This unit operates within an input voltage range of 85–264 VAC, and it is equipped with a numeric and function keypad, allowing for efficient user interactions.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-K10C15A7X

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal
Product LinePanelview Plus 1000
Part Number2711P-K10C15A7X
Weight32.00 lbs (14.51 kg)
Input Voltage Range (AC)85–264 VAC
Nominal Input Voltage100–240 VAC
Display TypeColor TFT LCD
Display Resolution640 x 480 pixels
Keypad TypeNumeric, Navigation, Function
Input Frequency50/60 Hz
Mounting TypePanel Mountable
Input TypeKeypad Only
Display Size10.4 in
Communication PortsControlNet
Storage Temperature-25 to 70 °C
Operating Temperature0 to 55 °C
RAM256 MB
View as PDF
Request a Repair

The Allen Bradley 2711P-K10C15A7X is an operator interface terminal designed for easy interaction in industrial environments. It features a crisp 10.4-inch color TFT LCD with a resolution of 640 x 480 pixels, providing clarity for monitoring and control tasks. The unit operates on a wide input voltage range, accepting between 85 and 264 VAC, with a nominal voltage rating of 100 to 240 VAC. With a 50/60 Hz input frequency, this terminal integrates smoothly into most electrical setups.

User input is facilitated through a keypad that includes numeric, navigation, and function keys, making it user-friendly for data entry and system operation. This terminal has a considerable RAM capacity of 256 MB, enhancing its ability to handle various applications and operational demands efficiently.

The 2711P-K10C15A7X is intended for panel mounting, while its weight is 10 lbs, ensuring stable installation. Communication capabilities include ControlNet ports, enabling connectivity with automation systems. The operating temperature for this interface ranges from 0 to 55 °C, while it can be stored safely between -25 to 70 °C, demonstrating its robustness in diverse conditions.
