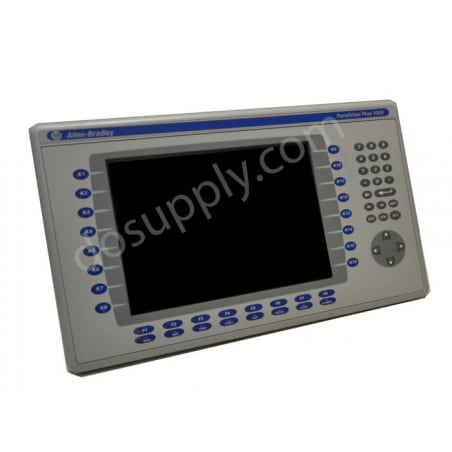

Product image is representative; revision or series may vary. Contact us to request a specific version.
2711P-K10C4D1X
The 2711P-K10C4D1X is part of the Allen Bradley PanelView Plus 1000 series. It features a 10.4-inch display that utilizes an active matrix TFT LCD, providing clarity with a resolution of 640 x 480. Coupled with a backlight boasting a lifespan of 50,000 hours, this operator terminal is designed for durability and consistent performance.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 2711P-K10C4D1X
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView Plus 1000 Operator Terminals |
| Product Line | Panelview Plus 1000 |
| Part Number | 2711P-K10C4D1X |
| Weight | 6.19 lbs (2.81 kg) |
| Series | A, B, C, D, and F |
| Display Size | 10.4 in |
| Backlight | CCFL with a minimum life of 50,000 hours |
| Display Type | Color active matrix TFT with LCD |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution | 640 x 480 |
| Keypad | Rated for 1 million presses |
| Keypad Function Keys | F1 to F16, K1 to K16; 0 to 9, Special Characters, Backspace, Enter, Left and Right Tab, Shift keys |
| Internal Memory | 32 MB Flash Memory / 32 MB RAM |
| Integrated Ports | Ethernet, Data Highway Plus (DH+), Remote I/O (RIO), DH485, RS232, USB |
| Input Voltage Range | 18-30VDC |
| Display Color | Color |
| Input Type | Keypad |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 VDC |
| Memory | 64 MB |
| Communication Cable | 1761-NET-ENI |
The PanelView Plus 1000 model 2711P-K10C4D1X by Allen Bradley is engineered for reliable industrial control applications. The unit features a substantial 10.4-inch display that delivers color visuals via an active matrix TFT. With a display area of 211 by 158 millimeters (or 8.3 by 6.2 inches), it supports 640 x 480 resolution, ideal for clear visibility in diverse lighting conditions. Its backlight, rated for at least 50,000 hours, ensures prolonged usability.
Control options include a keypad that can handle one million presses, encompassing dedicated function keys from F1 to F16 and K1 to K16. It allows for input of numbers, special characters, and navigational functions like Backspace and Shift, catering to a variety of user interactions. The memory configuration consists of 32 MB Flash memory along with an additional 32 MB of RAM, providing ample space for applications and data processing.
This model supports a wide input voltage range from 18 to 30 VDC and is marked as suitable for connection via Ethernet, Data Highway Plus (DH+), and other communication ports including RS-232 and USB. For those requiring expanded connectivity, communication cables such as the 1761-NET-ENI are compatible. The device is offered across several series, including Series A, B, C, D, and F, making it flexible for different settings and requirements.
- 2711P-K10C4DIX
- 2711P-K10CAD1X
- 2711P-K1OC4D1X
- 2711P-KI0C4D1X
- 2711PK10C4D1X
- 2711PK10C4DIX
- 2711PK10CAD1X
- 2711PK1OC4D1X
- 2711PKI0C4D1X
- 271IP-K10C4D1X
- 271IPK10C4D1X
- 27I1P-K10C4D1X
- 27I1PK10C4D1X
- 27IIP-KI0C4DIX
- 27IIP-KIOCADIX
- 27IIPKI0C4DIX
- 27IIPKIOCADIX
| Size | 10.4 inch (1000 color) |
|---|---|
| Input Type | Keypad or Keypad/ Touch |
| Display Type | Color active-matrix TFT |
| Display Size (Diagonal) | 10.4 in. |
| Viewing Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Display Resolution | 640 x 480, 18-bit color graphics |
| Typical Brightness | 300 cd/m2 (Nits) |
