About 2711P-K10C6B1

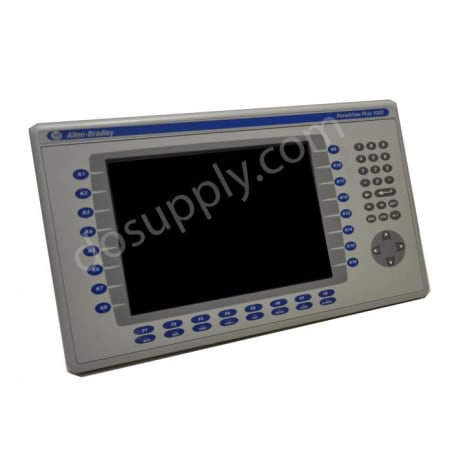

The obsolete Allen Bradley Panelview Plus 1000 2711P-K10C6B1 is an operator terminal that allows the user to interface with their machine. This HMI has a 10.4 in. Color Display screen. This Panelview enables the user to connect using FactoryTalk View Machine Edition software and a DH+ and DH-485 communication port with a 1770-CD and 1761-CBL-ASO3 communication cable(s). The user is able to control the operator terminal using the Keypad to input information and data. This unit is powered using 85-264 VAC and 18-32 VDC power. This Panelview Plus has the following internal memory: 64 MB. This unit has an internal backlight replacement part number of 2711P-RL10C. The approximate shipping weight and dimensions are 10 lbs. and 18 x 14 x 8 in. The most common Series are: Ser A, B, C, D, and F. The most common firmware for this Panelview Plus include 3.13-4.48. The Data Highway Plus terminals allow for point-to-point communication with a single controller, as well as network communication with multiple controllers over an Allen-Bradley DH+ network. Ladder logic is especially minimized by direct access to controller data files. Application files are easily downloaded or uploaded using PanelBuilder32 over the DH+ network, or directly via the on-board RS-232 printer port, or with a PC memory card. Application files are easily downloaded or uploaded using PanelBuilder32 over the DH + network or directly via the on-board RS-232 printer port. The PC memory card interface can also be used.
Technical specifications:
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2711P-K10C6B1 |
| Product Line | Panelview Plus 1000 |
| Display Size | 10.4 in. |
| Display Color | Color |
| Input Type | Keypad |
| Communication | DH+ and DH-485 |
| Input Power | 85-264 VAC and 18-32 VDC |
| Software | FactoryTalk View Machine Edition |
| Memory | 64 MB |
| Backlight | 2711P-RL10C |
| Communication Cable | 1770-CD and 1761-CBL-ASO3 |
| Shipping Weight | 10 lbs. |
| Shipping Dimensions | 18 x 14 x 8 in |
| Series | Ser A, B, C, D, and F |
| Firmware | 3.13-4.48 |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2711P-K10C6B1 |
| Product Line | Panelview Plus 1000 |
| Display Size | 10.4 in. |
| Display Color | Color |
| Input Type | Keypad |
| Communication | DH+ and DH-485 |
| Input Power | 85-264 VAC and 18-32 VDC |
| Software | FactoryTalk View Machine Edition |
| Memory | 64 MB |
| Backlight | 2711P-RL10C |
| Communication Cable | 1770-CD and 1761-CBL-ASO3 |
| Shipping Weight | 10 lbs. |
| Shipping Dimensions | 18 x 14 x 8 in |
| Series | Ser A, B, C, D, and F |
| Firmware | 3.13-4.48 |
FAQ
PanelView Plus is ideal for applications with a need to observe, manipulate, and display information graphically. This allows operators to quickly understand the status of their application. PanelView Plus is programmed with RSView Studio Machine Edition. It combines the most beneficial features from the well-known Allen-Bradley PanelView Standard and PanelView HMI products, as well as adding new functionality. Some of the features include: multi-vendor communications, trending, expressions, data logging, animation, and RSView Studio direct browsing of RSLogix 5000 addresses. The new modular design makes the PanelView Plus a flexible, cost-effective terminal enabling OEMs, system integrators, and end users to choose, change, or upgrade components to satisfy differing application requirements. There are many advantages to choosing the Allen Bradley Panelview Plus such as: top rated environmental specifications, RSView ME advanced functionality, flexible communication options, modular design for flexibility, inventory reduction, and easy upgrades. There is a choice of multiple dimension TFT active matrix color displays with keypad, touch, and keypad/touch versions. Your investment in PanelView products is protected by the ability to import current PanelView Standard and PanelView “e” applications into RSView Studio. In addition, the PanelView Plus designs fits into current PanelView cutouts, so you don’t have to change your panel design. PanelView Plus can help save you time and money whether it is providing more functional options, shortening development time, or making potential maintenance simpler!
| Type |
Lead Time |
Price |
Action |
|---|
| Repair Service |
2-4 weeks |
Ask |  Get Quote |
We Can Repair Your Panelview Plus 1000
We have a team of highly trained technicians that can repair your Panelview Plus quickly at a great low price. To get a repair quote call 1-800-730-0292 or email sales@dosupply.com. Some of the benefits of our repair process includes:
- Repair Turnaround of 3-5 Days for Most Panelview Plus
- Rush Repairs of 1-3 Days
- Fast Return of Your Repair via UPS, FedEx, or DHL.
- If the item is not repairable, you can choose to have it returned to you free of charge or it can be counted as an exchange credit toward a refurbished or new unit if available.
- Wide range of repairs that can be completed by our highly skilled technicians as shown below.
- All Repairs Come with Our 1-Year Warranty!
Repair Capabilities
We Can Repair Your Hardware Failures Including:
- Communication Failures
- Broken Toushcreens/Keypads
- Broken Glass
- Displays (Dead/Dim/Lines/Missing Pixels)
- Dead Backlights
- Broken Housing/Bezel
- Power Board Failures
Start UP Error Codes and Messages:
- RAM Test- Error 1
- Internal CF- Error 23
- CRC Check- Error 24
- Watchdog Test- Error 30
- Stuck Key- Error 31
- Stuck Touch- Error 31.5
- Battery Test- Error 32
- NVRAM Access- Error 33.5
- EXE Check- Error 40
- External CF- Error 50
Please refer to the manual for more information about the 2711P-K10C6B1 such as the wiring diagrams, data sheets,
firmware information and migration or obsolescence details.
