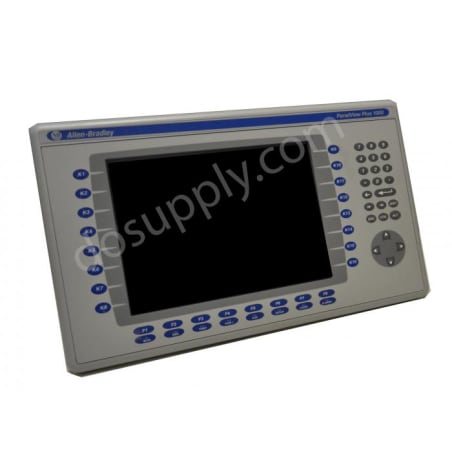

Allen Bradley Panelview Plus 1000 2711P-K10C6D1X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-K10C6D1X

|
Need a Specific Revision?

The Allen Bradley 2711P-K10C6D1X is an operator interface terminal featuring a 10.4-inch color TFT LCD display. With a resolution of 640 x 480 pixels, it provides clear visuals for operators working in diverse environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-K10C6D1X

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal
Product LinePanelview Plus 1000
Part Number2711P-K10C6D1X
Weight6.00 lbs (2.72 kg)
Display TypeColor TFT LCD
USB Ports2 USB Ports
Display Size10.4 in
Communication ProtocolDH+, DH-485, RIO, ENET, RS-232, USB
Operating Temperature-10 to 55 °C
Input TypeKeypad
Memory64 MB
Display Resolution640 x 480 pixels
Input Voltage (DC)18–32 VDC
BacklightReplaceable
View as PDF
Request a Repair

The 2711P-K10C6D1X model from Allen Bradley's Panelview Plus 1000 series functions as a versatile operator interface terminal designed for industrial applications. This terminal features a 10.4-inch color TFT LCD display, delivering a resolution of 640 x 480 pixels. Designed for intuitive operation, it utilizes a keypad input for user commands.

The unit weighs 10 lbs (4.54 kg), striking a balance between portability and structural integrity. It is equipped with two USB ports, enabling easy connections to other devices and facilitating data transfer.

This terminal is built to endure a wide operating temperature range, functioning effectively in conditions from -10 to 55 °C. It accommodates a variety of communication protocols, including DH+, DH-485, RIO, ENET, and RS-232, allowing seamless integration within existing systems. The memory capacity stands at 64 MB, providing adequate space for applications. Designed with a replaceable backlight, the 2711P-K10C6D1X offers extended usability and efficient performance in dynamic settings.

To power this operator terminal, an input voltage within the range of 18 to 32 VDC is necessary, making it suitable for various power systems. Overall, the 2711P-K10C6D1X is engineered to enhance operator efficiency in industrial environments and is adaptable to a range of operational needs.
