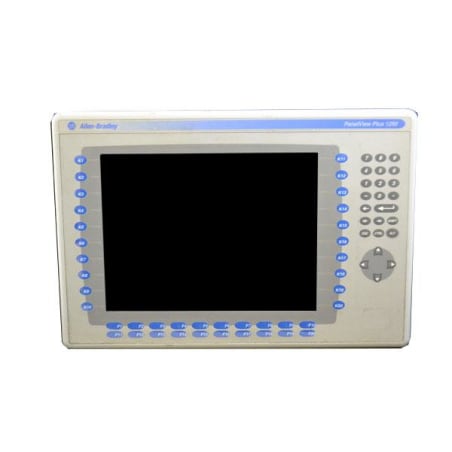

Allen Bradley Panelview Plus 1250 2711P-B12C4A1X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B12C4A1X

|
Need a Specific Revision?

This part, the 2711P-B12C4A1X from the Panelview Plus 1250 series by Allen Bradley, is an operator interface terminal designed for various industrial applications. It features both a keypad and a touchscreen, each with distinct dimensions and weights, providing flexible user interaction options.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B12C4A1X

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal (HMI)
Product LinePanelview Plus 1250
Part Number2711P-B12C4A1X
Weight7.00 lbs (3.18 kg)
Cutout Dimensions (HxWxD)Keypad: 257 x 390 mm (10.11 x 15.35 in.), Touch: 257 x 338 mm (10.11 x 13.29 in.)
Power Consumption (AC)160VA max, 65VA typical
Input Voltage (AC)100-240V AC, 50-60 Hz
External Power SupplyCat. No. 1606-XLE120E, safety extra low voltage (SELV) or protected extra-low voltage (PELV) power supply for 700-1500 DC-powered terminals; 100-240V AC, 250VA max
Power Consumption (DC)70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC)
Input Voltage (DC)18-32V DC (24V DC nominal)
Communication PortsEthernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, (2) USB host ports, Network interface for optional Ethernet, DH+/DH-485, or ControlNet communication module (scheduled or unscheduled)
Battery (Real-time clock)Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month; Battery life: 4 years minimum at 25 °C (77 °F) ; Field-replaceable: Cat. No. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery
Keypad DescriptionStainless-steel membrane, Numeric, navigation, and function keys, Actuation: 1 million presses; Operating force: 340 g
Touch Screen8-wire analog resistive, Actuation: 1 million presses; Operating force: 10…110 g
BacklightCCFL, 50,000 hours minimum at 25 °C (77 °F), field replaceable
Luminance300 cd/m² (Nits)
View as PDF
Request a Repair

The Allen Bradley 2711P-B12C4A1X is an operator interface terminal from the Panelview Plus 1250 series, making it suitable for diverse applications in industrial automation. With a compact footprint, the device offers two user interaction options: a keypad and a touchscreen. The keypad measures 257 x 390 mm (10.11 x 15.35 in.) and weighs 3.4 kg (7.5 lb), while the touch display version is slightly smaller at 257 x 338 mm (10.11 x 13.29 in.) and weighs 3.2 kg (7.0 lb).

This terminal operates efficiently with an AC input voltage range of 100-240V and a frequency of 50-60 Hz, with power consumption peaking at 160VA and typically drawing 65VA. Alternatively, it can also function on DC with an input voltage range of 18-32 V, consuming up to 70 W at maximum load. An external power supply rated for 250VA can further allow for safe operation within the required electrical specifications.

Data communication features are extensive, with support for Ethernet (10/100 Mbps), RS-232, and two USB host connections. The device can integrate optional network communication modules for Ethernet, DH+/DH-485, or ControlNet protocols, enhancing its connectivity capabilities within automation systems.

Another notable aspect is its real-time clock, powered by a field-replaceable battery, which helps timestamp crucial operational data. The accuracy of the clock is ±2 minutes per month, with an expected battery life of at least four years at standard temperature conditions.

The keypad consists of a stainless-steel membrane, ensuring durability while allowing for up to one million actuation presses at an operating force of approximately 340 grams. The touchscreen, employing 8-wire analog resistive technology, also boasts an actuation lifespan of one million presses, with a requirement of 10 to 110 grams of operating force to engage.

For visibility, the terminal's backlight utilizes a CCFL with a lifespan of 50,000 hours at standard operating temperatures. This, combined with a brightness measurement of 300 cd/m², assures good readability across various lighting conditions, ensuring optimal performance in demanding environments.
