Panelview Plus 1250

In StockIn Stock
Ships TodayShips Today
One Year DO Supply WarrantyOne Year DO Supply Warranty
'Fast RepairsFast repairs at low costs

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty.

The PanelView Plus 1250 Operator Interface Terminal has a 12.1 inch flat panel color display with 640 x 480 resolution and 18 bit graphics. This Operator Interface supports input via keypad with 40 keys, touch screen or keypad and touch screen.This Modules uses RS-232 and Ethernet networks available through built-in communication ports.It also has two USB ports.

Troubleshooting Your PanelView Plus 1250

PanelView Plus 1250 Incorrect Start-Up

If the PanelView Plus 1250 terminal is not starting up correctly always check for adequate power first. Inadequate power can cause a variety of unpredictable behavior. Simply verify the terminal's power requirement in the specifications table. It is also good practice to determine whether there have been any changes since the last startup. Determine what these are to see if they can be reversed.

Battery voltage, as well as the display temperature, are indicative of other potential issues as well. Check the battery voltage and display temperature from the PanelView Plus 1250 terminal desktop or from the FactoyTalk View ME station configuration mode. If the voltage is below 2.75 volts DC, consider replacing the battery. Obstructed airflow in the chassis can cause the CPU and/or display to overheat. If the CPU temperature is above 95 degrees Celsius or the display temperature is above 55 degrees Celsius, try to moderate the ambient temperatures.

If you continue have start-up issues, observe the splash screen for state messages and for the status or error codes.



Start-Up Messages

Message No. Meaning
RAM Test 1 Tests RAM memory
Image Search 2 Checks for new operating system firmware upgrade on external CompactFlash card and serial port
Registry Search 2.5

Locates and loads most recent registry while maintaining multiple copies of the registry

Internal CF 23 Programs recently downloaded operating system firmware into internal flash memory
CRC Check 24 Checks operating system firmware integrity
Starting System 28 Launches the operating system
System Check ### 29 Checks internal file system integrity
System Check 29.1 Contact tech support. The internal file system integrity check has been disabled
Watchdog Test 30 Verifies system integrity by testing watchdog circuitry
Stuck Key 31 Checks integrity of the function key hardware
Stuck Touch 31.5 Checks integrity of touch screen hardware
Battery Test 32 Checks integrity of battery hardware
Video Initialized 37 Initializes and configures graphic video system
External CF 50 Transfers new operating system firmware upgrade to the terminal from an external CompactFlash card



Start-Up Error Messages

Message Error No. Meaning  Action
RAM Test 1 Failed RAM Test Reset the terminal. If the error continues, reset SO-DIMM RAM module. If this does not fix the issue, replace the logic module
Internal CF 23 Error programming the new OS firmware to internal CompactFlash. Reload firmware. If the error continues, replace the internal CompactFlash. If this does not fix the issue, replace the logic module
CRC Check 24 Checksum of the OS firmware failed. Reload firmware. If the error continues, replace the internal CompactFlash. If this does not fix the issue, replace the logic module
Watchdog Test 30 Watchdog test failure Reload firmware. If this does not fix the issue, replace the logic module
Stuck Key 31 Function key failure Verify nothing is pressing any keys. Reset the terminal (do not use key presses). If this does not fix the issue, replace the display module
Stuck Touch 31.5 Touchscreen failure Verify nothing is pressing the touch screen. Reset the terminal (do not use the touch screen). If this does not fix the issue, replace the display module
Battery Test 32 Failed battery Replace the battery. If this does not resolve the issue, replace the logic module
NVRAM Access 33.5 Nonvolatile memory failure Upgrade the system firmware
EXE Check 40 System OS firmware is missing or corrupt. Reload firmware. If the error continues, replace the internal CompactFlash. If this does not fix the issue, replace the logic module
External CF 50 Error loading the OS firmware from the external CompactFlash card. Reload firmware. If the error continues, replace the internal CompactFlash. If this does not fix the issue, replace the logic module



PanelView Plus 1250 Status Indicators

Status indicators are located on the back of your PanelView 1250 terminal. The COMM indicator is green and reflects communication. The FAULT indicator is red and reflects hardware faults. Upon startup, the fault indicator should be off and the comm indicator on. If the fault indicator flashes a few times at startup, this is not a concern. However, if both indicators are off you should check the power cable. See the table below to interpret the terminal's indicator status:

Startup Issues - Indicator Status

Fault Indicator (RED) Comm Indicator (GREEN) Meaning and Action
Possibly Recoverable Error
Blinking  On Windows CE Operating System failed or missing. Reload firmware.
Off Most recent firmware download failure. Reload firmware.
Blinking  EBC boot loader firmware missing/failed. Reload firmware.
Fatal Error
On Blinking Fatal display hardware error. Replace display module.
Off Fatal hardware error. Replace logic module.

PanelView Plus 1250 Terminal Component Anomalies

Display Issue

Issue Action
Dim or Unreadable Display

Check display settings

When in configuration mode, select Terminal Setting>Display>Display Intensity

Backlight Unexpectedly Turning Off or Dimming

Check screen saver settings -

When in configuration mode, select Terminal Settings>Display>Screen Saver



Touch Screen Issues

Issue Action
Touch Screen Operating Incorrectly/Inaccurate Input and Dragging

Calibrate Your Touch Screen

When in configuration mode, select Terminal Settings> Touch Screen>Calibration

Screen Cursor Not Visible

Verify the Cursor is Enabled -

When in configuration mode, select Terminal Settings> Input Devices> Touch Screen > Cursor

Touch Screen Not Accepting Touch Input

Attach USB Mouse:

Mouse works but touch screen does not: Touch driver or screen is nonfunctional

Neither mouse nor touch screen working: Application issue



If the PanelView Plus 1250 display lacks a touch screen, you may not have a touch screen display. Check the label on the terminal and the part number of the unit to verify.

Please Note: When calibrating your touch screen, the process requires four (4) screen touches. If the touches are not satisfactory, more will be requested until calibration is successful. If the touch screen does not calibrate or continues to malfunction replace the PanelView Plus 1250 display module.



Mouse Issues

Issue Action
Mouse Operating Incorrectly Reattach USB mouse, restart terminal
Cursor Not Visible/Mouse Settings Require Adjustment

Verify the Cursor is Enabled -

When in configuration mode, select Terminal Settings>Display>Cursor

Check Mouse Settings -

When in configuration mode, select Terminal Settings>Input Devices>Mouse

Mouse is Composite Device (Keyboard and Mouse) Replace with standalone mouse
USB Mouse Non-Operational Replace the USB mouse. Current mouse may be noncompliant



Keyboard Issues

Issue Action
Keyboard Operating Incorrectly Reattach the USB keyboard, restart the terminal
Keyboard Rejecting Key Input

Check Keypad Input -

If keypad works either the keyboard driver or keyboard stopped working. If neither the keypad nor the keyboard work, an application failure is likely

Keyboard is USB Composite Keyboard and Mouse  Simply use a standalone USB keyboard
USB Keyboard is Non-Operational Replace the USB keyboard. Current keyboard may be noncompliant
Keyboard Not Enabled

Check Alt-Ctrl Keys

When in configuration mode, select Terminal Settings>Input Devices>Keyboard



Keypad Issues

Issue Action
Keypad Not Accepting Input

Check Keyboard Input-

If the keyboard works either the keypad driver or keypad stopped working. If neither the keypad nor the keyboard work, an application failure is likely

Hold-Off Delay too Long/Multiple Key Presses Inhibited by Multi-Key Lockout

Check Keypad Settings-

When in configuration mode, select Terminal Settings>Input Devices>Keypad

Note: Home, End, Up and Down keys do not work when single or multi-key lockout is enabled.

Isolating PanelView Plus 1250 Ethernet Issues

Indicator Status and Cable Connection/ Quality

Examine the status indicators at the Ethernet connector. If the indicator is green, a communication link is on. If the indicator is an amber color and flashing, this indicates data activity. You should always ensure there is a good connection to the hub and uplink ports. Poor cable quality and crimping can inhibit the ethernet connection.

Ethernet Controller IP Address/ Conflicting IP Address

When in configuration mode select Terminal Settings> Networks and Communications > Network Connections > Network Adaptors. Check the DHCP. If this is enabled the device will attempt to connect to a valid IP address within seconds of startup. If it fails to acquire and IP address, the TCP/IP protocol will assign 169.254.xxx.xxx. If the DHCP is not enabled, verify the IP address specified does not conflict with another device on the network.

Verify Device Name

Other devices must not share the same hostname if they are on the same network. When in configuration mode, select Terminal Settings> Communications and Networks> Network Connections> Device Name.

Peer or Server Settings

The Ethernet issue may be caused by the other side of the connection.



Repair Your PanelView Plus 1250

Here at DO Supply, we offer repair services for your Allen-Bradley products, such as the Allen-Bradley PanelView Plus 1250. Click here for more information or to request a quote.

Panelview Plus 1250 Description Stock Level
2711P-B12C15A1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication AC Power Logic Module...
In Stock
2711P-B12C15A2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication AC Power Logic Module...
In Stock
2711P-B12C15A6 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication AC Power CE Logic Module...
In Stock
2711P-B12C15A7 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication AC Power CE Logic Module...
In Stock
2711P-B12C15B1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication AC Power/DC Power Logic...
In Stock
2711P-B12C15B2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication AC Power/DC Power Logic...
In Stock
2711P-B12C15D1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication DC Power Logic Module...
In Stock
2711P-B12C15D2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication DC Power Logic Module...
In Stock
2711P-B12C15D6 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication DC Power CE Logic Module...
In Stock
2711P-B12C15D7 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with ControlNet Communication DC Power CE Logic Module...
In Stock
2711P-B12C4A1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module...
In Stock
2711P-B12C4A2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module...
In Stock
2711P-B12C4A6 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power CE Logic Module...
In Stock
2711P-B12C4A7 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power CE Logic Module...
In Stock
2711P-B12C4B1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power/DC Power Logic...
In Stock
2711P-B12C4B2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power/DC Power Logic...
In Stock
2711P-B12C4D1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module...
In Stock
2711P-B12C4D2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module...
In Stock
2711P-B12C4D6 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power CE Logic Module...
In Stock
2711P-B12C4D7 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power CE Logic Module...
In Stock
2711P-B12C6A1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power Logic Module...
In Stock
2711P-B12C6A2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power Logic Module...
In Stock
2711P-B12C6A6 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power CE Logic Module...
In Stock
2711P-B12C6A7 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power CE Logic Module...
In Stock
2711P-B12C6B1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power/DC Power Logic...
In Stock
2711P-B12C6B2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power/DC Power Logic...
In Stock
2711P-B12C6D1 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power Logic Module...
In Stock
2711P-B12C6D2 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power Logic Module...
In Stock
2711P-B12C6D6 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power CE Logic Module...
In Stock
2711P-B12C6D7 Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power CE Logic Module...
In Stock
2711P-K12C15A1 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication AC Power Logic Module with 64MB
In Stock
2711P-K12C15A2 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication AC Power Logic Module with 128MB
In Stock
2711P-K12C15A6 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication AC Power CE Logic Module with 128 MB
In Stock
2711P-K12C15A7 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication AC Power CE Logic Module with 256 MB
In Stock
2711P-K12C15B1 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication AC Power/DC Power Logic Module with...
In Stock
2711P-K12C15B2 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication AC Power/DC Power Logic Module with...
In Stock
2711P-K12C15D1 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication DC Power Logic Module with 64MB
In Stock
2711P-K12C15D2 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication DC Power Logic Module with 128MB
In Stock
2711P-K12C15D6 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication DC Power CE Logic Module with 128 MB
In Stock
2711P-K12C15D7 Panelview Plus 1250 Keypad 12.1 in Color Display with ControlNet Communication DC Power CE Logic Module with 256 MB
In Stock
2711P-K12C4A1 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module with 64MB
In Stock
2711P-K12C4A2 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module with 128MB
In Stock
2711P-K12C4A6 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power CE Logic Module with 128 MB
In Stock
2711P-K12C4A7 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power CE Logic Module with 256 MB
In Stock
2711P-K12C4B1 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power/DC Power Logic Module with...
In Stock
2711P-K12C4B2 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power/DC Power Logic Module with...
In Stock
2711P-K12C4D1 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module with 64MB
In Stock
2711P-K12C4D2 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module with 128MB
In Stock
2711P-K12C4D6 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power CE Logic Module with 128 MB
In Stock
2711P-K12C4D7 Panelview Plus 1250 Keypad 12.1 in Color Display Ethernet, RS-232, and two USB DC Power CE Logic Module with 256 MB
In Stock
2711P-K12C6A1 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power Logic Module with 64MB
In Stock
2711P-K12C6A2 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power Logic Module with 128MB
In Stock
2711P-K12C6A6 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power CE Logic Module with 128 MB
In Stock
2711P-K12C6A7 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power CE Logic Module with 256 MB
In Stock
2711P-K12C6B1 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power/DC Power Logic Module with...
In Stock
2711P-K12C6B2 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication AC Power/DC Power Logic Module with...
In Stock
2711P-K12C6D1 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power Logic Module with 64MB
In Stock
2711P-K12C6D2 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power Logic Module with 128MB
In Stock
2711P-K12C6D6 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power CE Logic Module with 128 MB
In Stock
2711P-K12C6D7 Panelview Plus 1250 Keypad 12.1 in Color Display with DH+ /DH-485 communication DC Power CE Logic Module with 256 MB
In Stock
2711P-RBK12 The 2711P-RBK12 bezel is a replacement bezel for the Allen-Bradley 12-inch PanelView terminals. It is used with...
In Stock
2711P-RBT12 The 2711P-RBT12 replacement bezel is a PanelView Plus accessory made by Allen-Bradley/Rockwell Automation. It is...
In Stock
2711P-RDB12CK Display Module 1250 Model with 12.1 in. Color Display and Touchscreen/keypad and conformal coated. In Stock Surplus...
In Stock
2711P-RDK12CK Display Module 1250 Model with 12.1 in. Color Display and Keypad and conformal coated.
In Stock
2711P-RDT12AG Display Module 1250 Model with 12.1 in. Color Display and Touchscreen with built in antiglare overlay.
In Stock

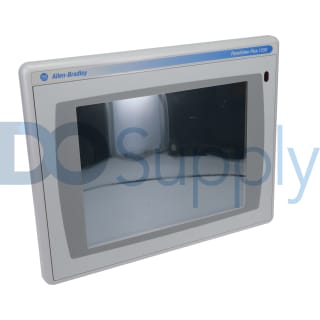

2711P-RDT12C Display Module 1250 Model with 12.1 in. Color Display and Touchscreen.
In Stock
2711P-RDT12CK Display Module 1250 Model with 12.1 in. Color Display and Touchscreen and conformal coated.
In Stock
2711P-T12C15A1 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication AC Power Logic Module with 64MB
In Stock
2711P-T12C15A2 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication AC Power Logic Module with 128MB
In Stock
2711P-T12C15A6 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication AC Power CE Logic Module with...
In Stock
2711P-T12C15A7 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication AC Power CE Logic Module with...
In Stock
2711P-T12C15B1 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication AC Power/DC Power Logic Module...
In Stock
2711P-T12C15B2 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication AC Power/DC Power Logic Module...
In Stock
2711P-T12C15D1 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication DC Power Logic Module with 64MB
In Stock
2711P-T12C15D2 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication DC Power Logic Module with 128MB
In Stock
2711P-T12C15D6 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication DC Power CE Logic Module with...
In Stock
2711P-T12C15D7 Panelview Plus 1250 Touchscreen 12.1 in Color Display with ControlNet Communication DC Power CE Logic Module with...
In Stock
2711P-T12C4A1 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module with 64MB
In Stock
2711P-T12C4A2 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module with 128MB
In Stock
2711P-T12C4A6 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB AC Power CE Logic Module with...
In Stock
2711P-T12C4A7 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB AC Power CE Logic Module with...
In Stock
2711P-T12C4B1 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB AC Power/DC Power Logic Module...
In Stock
2711P-T12C4B2 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB AC Power/DC Power Logic Module...
In Stock
2711P-T12C4D1 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module with 64MB
In Stock

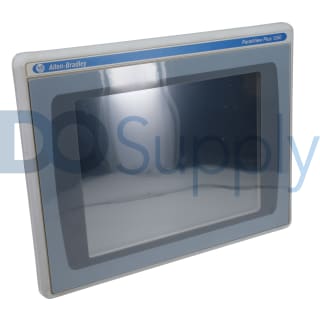

2711P-T12C4D2 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module with 128MB
In Stock
2711P-T12C4D2K The 2711P-T12C4D2K PanelView Plus 1250 terminal is an operator interface terminal made by Allen-Bradley/Rockwell...
In Stock
2711P-T12C4D6 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB DC Power CE Logic Module with...
In Stock
2711P-T12C4D7 Panelview Plus 1250 Touchscreen 12.1 in Color Display Ethernet, RS-232, and two USB DC Power CE Logic Module with...
In Stock
2711P-T12C6A1 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication AC Power Logic Module with 64MB
In Stock
2711P-T12C6A2 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication AC Power Logic Module with...
In Stock
2711P-T12C6A6 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication AC Power CE Logic Module with...
In Stock
2711P-T12C6A7 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication AC Power CE Logic Module with...
In Stock
2711P-T12C6B1 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication AC Power/DC Power Logic Module...
In Stock
2711P-T12C6B2 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication AC Power/DC Power Logic Module...
In Stock
2711P-T12C6D1 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication DC Power Logic Module with 64MB
In Stock
2711P-T12C6D2 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication DC Power Logic Module with...
In Stock
2711P-T12C6D6 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication DC Power CE Logic Module with...
In Stock
2711P-T12C6D7 Panelview Plus 1250 Touchscreen 12.1 in Color Display with DH+ /DH-485 communication DC Power CE Logic Module with...
In Stock
Panelview Plus 1250 Description Stock Level

More Information

Manufactured by Allen-Bradley, the PV Plus 1250 series is a series of controller and display terminals that feature internal CompactFlash Cards with firmware or operating systems and RAM. The PV Plus 1250 terminals feature the TFT color graphics displays that are programmed with a keypad, touchscreen, or a combination of both input types. The Allen-Bradley PV Plus 1250 terminals come with common features and firmware for providing easy unit migration to the larger displays. The units feature up to 8-wire resistive touchscreens with a high level of accuracy for the operator interfaces. Whenever a point on the touchscreen is pressed, the layers connect, changing the electrical current. The PV Plus 1250 units come with analog-resistive touchscreens and this applies to the touchscreen-only terminals or the combined keypad/touchscreen terminals.


The PV Plus 1250 terminal keypads feature function keys that are used for initiating the functions on the terminals’ displays. The units feature 12.1-inch display screens with color graphics support. They come with the Ethernet ports for controller communication. The devices feature status indicators that are used for monitoring the functionality of these devices. The terminals have the default switches that are used for performing operations like restoring the units to their factory default settings. The reset switches are used for resetting the terminals without the need for powering the devices on and off. The PV Plus 1250 terminals feature modular components that consist of a display module, a logic module, and an optional communication module. These components feature a flexible configuration and they are easy to install and upgrade.
